In high-reliability electronics, a flexible circuit or printed circuit board cannot simply function when it leaves the factory. It must continue performing through temperature cycling, vibration, bending, humidity, current load, installation stress, and years of field use.
IPC Class 3 provides a recognized framework for flex, rigid-flex, and rigid PCBs and assemblies used in applications where failure is costly, disruptive, or potentially safety critical. When specified by the applicable standard, customer drawing, and manufacturing requirements, Class 3 can help align design expectations, material selection, fabrication controls, inspection methods, and traceability.
Understanding IPC Classes and the Transition to the Global Electronics Association
For decades, electronics manufacturers have relied on IPC standards to define quality, reliability, and workmanship requirements for printed circuit boards and electronic assemblies. In June 2025, IPC officially rebranded as the Global Electronics Association, also known as GEA. The change reflects the organization’s expanded role as a global advocate for the electronics industry while preserving the IPC name for technical standards and certification programs.
Before discussing Class 3, it helps to review the three product classes commonly referenced in electronics manufacturing.
IPC Class 1: General Electronic Products
Class 1 applies to general electronic products where the primary requirement is basic function. These products are typically lower cost, shorter life cycle, and not mission critical. Minor cosmetic or workmanship imperfections may be acceptable when they do not prevent the product from working as intended.
IPC Class 2: Dedicated Service Electronic Products
Class 2 applies to products that require continued performance and an extended service life and for which uninterrupted service is desired but not critical. This includes many commercial, industrial, telecom, and consumer electronics applications.
IPC Class 3: High Performance Electronic Products
Class 3 is the highest reliability class. It applies to products where continuous high performance is essential and failure could create serious operational, safety, financial, or regulatory risk. These applications often include aerospace, defense, medical devices, critical industrial systems, advanced transportation, and other high-reliability electronics.
What Makes IPC Class 3 Different?
IPC Class 3 is not simply a final-inspection requirement. When specified by the applicable standard, customer drawing, and manufacturing requirements, it supports a more disciplined approach to materials, fabrication, assembly, inspection, and documentation.

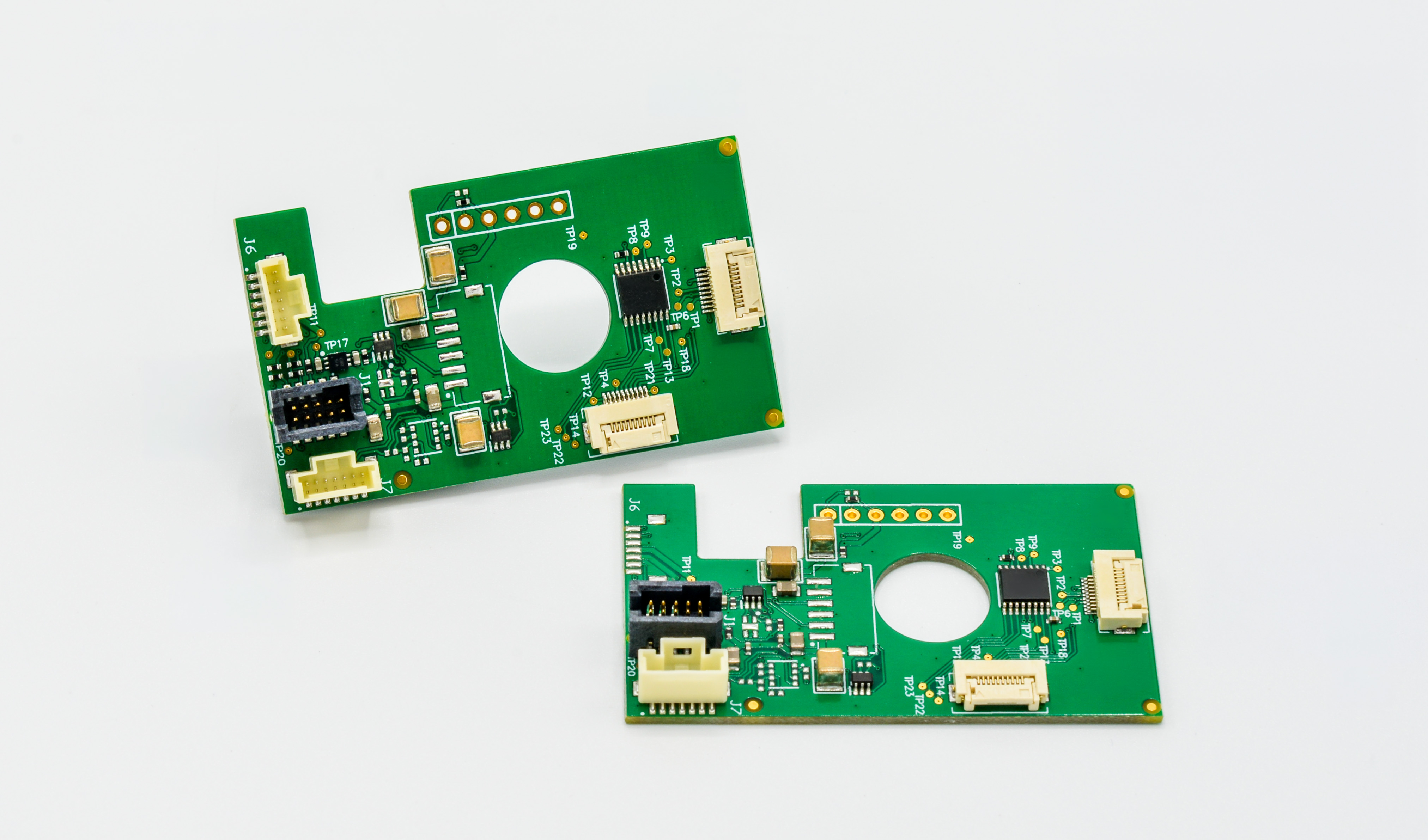

Build for High Reliability from the Start
High-reliability PCB programs require more than basic fabrication requirements. PICA works with OEMs to align materials, board construction, inspection, documentation, and manufacturing controls for demanding flex, rigid-flex, rigid PCB, and assembly applications.
Talk with our team about your next high-reliability PCB program.
Depending on the applicable IPC standard, product type, customer drawing, and approved manufacturing requirements, Class 3 work may involve tighter acceptance criteria for features such as copper plating integrity, hole-wall quality, annular ring, conductor spacing, solder joint acceptability, material control, and process consistency. The goal is to reduce variation, prevent latent defects, and confirm that every board meets the performance expectations of the end application.
For OEMs, this matters because a bare PCB or assembled board may look acceptable at a glance but still contain internal or process-related issues that could fail later under thermal cycling, vibration, bending, humidity, current load, or field stress. High-reliability requirements can help reduce that risk through disciplined inspection and verification.
Standards Note: IPC product classes and acceptance criteria must be applied according to the applicable standard revision, product type, customer drawing, purchase-order requirements, and end-use conditions. This article provides general educational information and is not a substitute for the applicable IPC standard or customer specification.
Inspection Requirements for High-Reliability Boards
Inspection is one of the clearest differences between standard commercial PCB manufacturing and high-reliability production. High-reliability PCB programs may use verification throughout the production flow based on the applicable standard, product construction, customer requirements, and approved inspection plan.
Incoming Material Verification
Incoming materials are reviewed against the customer specification and manufacturing requirements before production begins. For rigid, flex, and rigid-flex boards, this may include laminate type, copper weight, polyimide materials, coverlay, adhesive systems, surface finish, and other controlled inputs.
In-Process Inspection
Critical production stages are monitored during fabrication and assembly. This helps identify issues early, before they move into later process steps where rework becomes more difficult or failure risk increases. Examples can include checks after imaging, etching, drilling, plating, lamination, solder mask or coverlay application, surface finish, and assembly operations.
Automated Optical Inspection
Automated optical inspection, or AOI, can be used to detect conductor defects, spacing issues, opens, shorts, registration problems, and pattern inconsistencies. It supports repeatable inspection and can help catch defects that may be difficult to identify manually.
Microsection Analysis
Microsectioning provides a cross-sectional view of the board structure. This allows inspection teams to evaluate plating thickness, barrel integrity, internal-layer registration, dielectric condition, hole quality, and other features that cannot be fully verified from the surface.
|
|
|
|
|

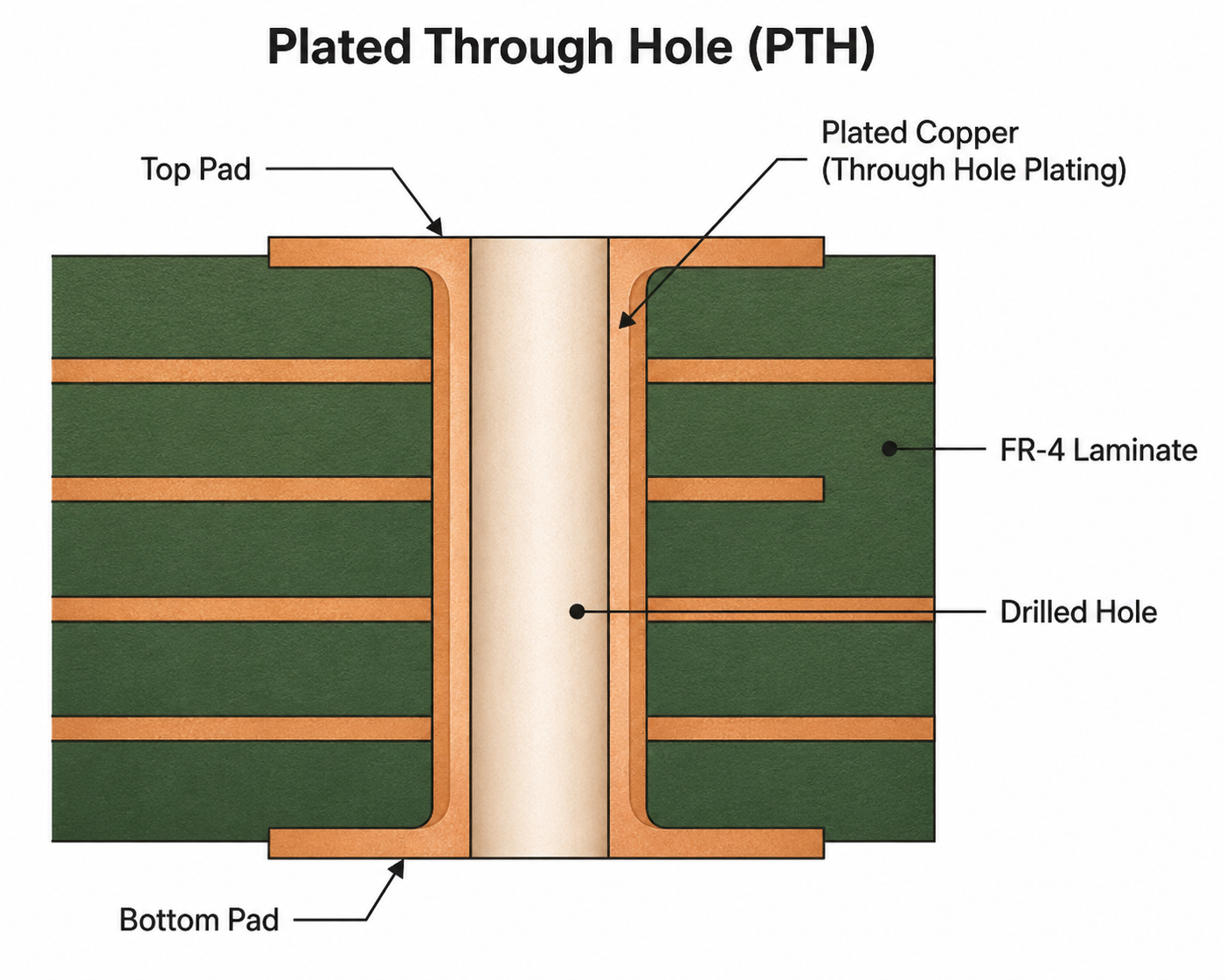

Plated Through Hole |

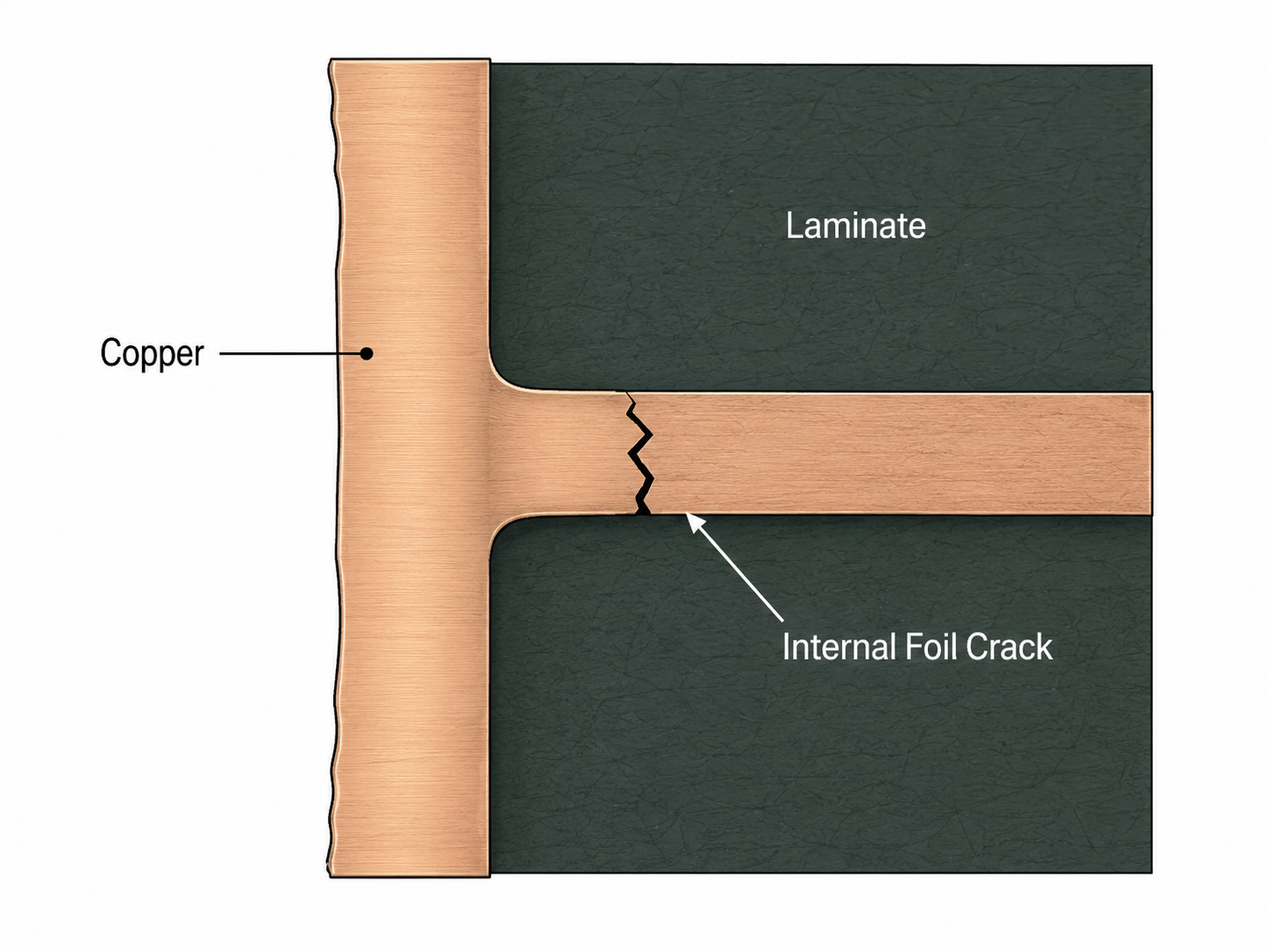

Internal Foil Crack |

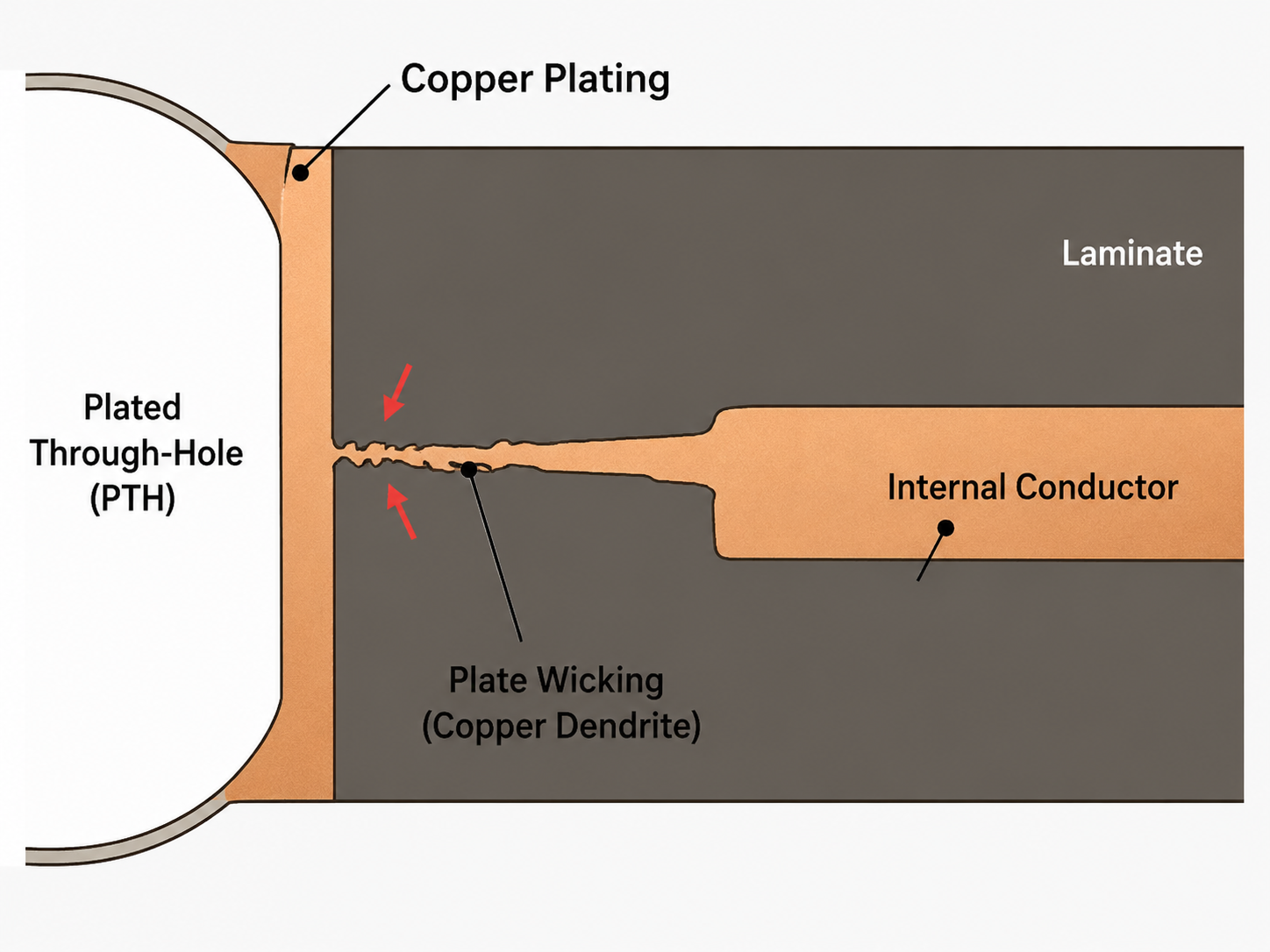

Plating Wicking |
Conceptual illustrations shown for educational purposes. Actual conditions, inspection results, and acceptance criteria depend on the applicable product requirements and standards.
Final Visual and Dimensional Inspection
Final inspection confirms that the finished board meets drawing requirements, customer specifications, and applicable acceptance criteria. For high-reliability work, final inspection is performed against the applicable drawing, customer specifications, and acceptance criteria because field failures can carry greater operational, financial, and safety consequences.
Traceability Protocols in High-Reliability Manufacturing
Traceability is a major part of high-reliability electronics manufacturing. In Class 3 applications, customers often need to know exactly which materials, processes, inspections, and production records are tied to a specific lot or build.
A strong traceability program may include documentation for material lots, laminate suppliers, copper foil batches, date codes, process parameters, inspection results, test records, operator certifications, traveler history, nonconformance reports, and corrective actions.
This documentation creates a manufacturing history for the product. If an issue is found during testing or in the field, traceability allows the manufacturer and OEM to identify affected lots, investigate root cause, contain risk, and prevent recurrence.
For industries such as aerospace, defense, medical, and critical industrial electronics, traceability is often necessary for quality management, compliance, customer audits, and long-term product support.

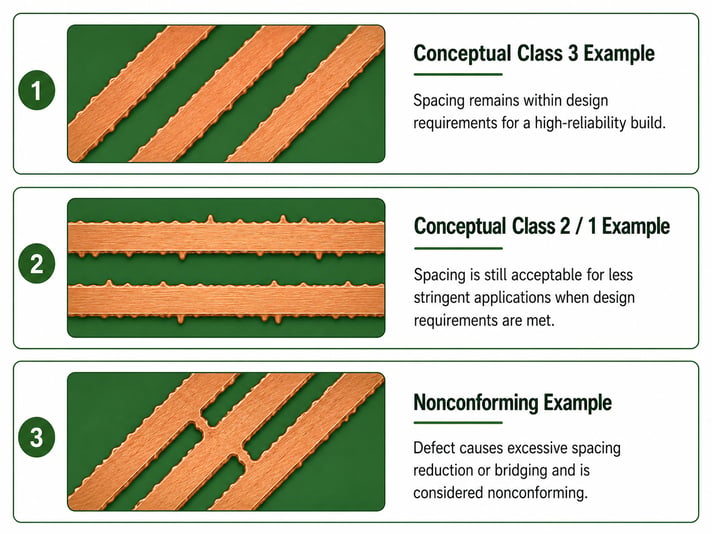

Conceptual Examples of Conductor Spacing Conditions
Illustrations are for general educational purposes only. Final acceptance depends on the applicable IPC standard, product specification, drawing requirements, and standard revision.
How IPC Class 3 Applies to Flexible Circuits
Flexible circuits have unique reliability considerations because they may bend, fold, flex, or experience continuous movement depending on the application. Even static flex circuits must survive forming, installation, vibration, temperature changes, and mechanical stress.
For high-reliability flex circuits, quality depends on both material control and design for reliability. Polyimide base materials, adhesive systems, copper type, coverlay alignment, bend radius, via placement, and conductor routing all influence long-term performance.
Copper Integrity
Flex circuits rely on copper conductors that may be exposed to repeated bending or mechanical stress. High-reliability flex designs place greater emphasis on conductor integrity, appropriate copper selection, adequate spacing, and routing practices that help avoid mechanical stress concentrations.
Coverlay and Insulation Control
Coverlay protects conductors while preserving flexibility. Registration, adhesion, openings, and material selection must be carefully controlled to help prevent exposure, cracking, lifting, or reliability issues during use.
Via and Plated-Hole Reliability
Vias and plated through holes in flex and rigid-flex boards must withstand mechanical movement and thermal cycling. Inspection methods specified for the build can help evaluate plating quality and structural integrity in these high-stress areas.
How IPC Class 3 Applies to Rigid and Rigid-Flex PCBs
Rigid boards used in high-reliability applications often support high-density routing, controlled impedance, heavy copper, thermal demands, or complex multilayer stackups. These designs require tight process control to maintain electrical and mechanical reliability.
For rigid PCBs, high-reliability quality focus areas can include plating consistency, hole-wall integrity, layer registration, conductor spacing, surface-finish quality, dielectric integrity, and solderability.
Rigid-flex designs add another layer of complexity because they combine rigid board structures with flexible circuit sections. The transition area between rigid and flex regions is especially important because it can become a mechanical stress point. Inspection and documentation help confirm that these complex builds are manufactured consistently and verified thoroughly.

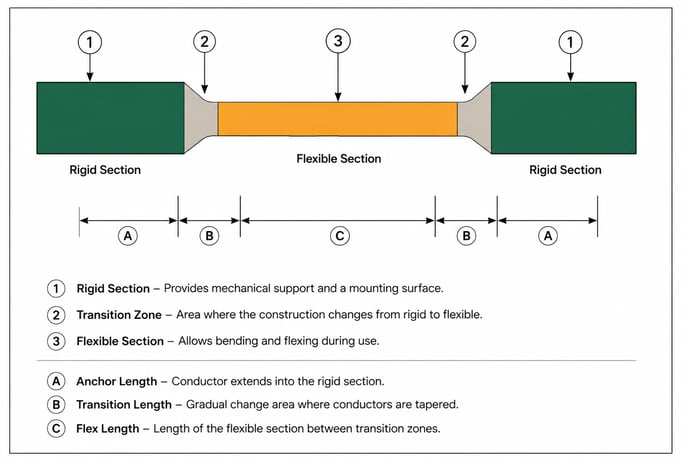

Rigid-Flex Transition Zone: Conceptual Illustration
Actual transition-zone construction, dimensions, conductor routing, and material stackup should be defined by the applicable design, fabrication requirements, and customer specifications.
Does IPC Class 3 Guarantee Quality?
IPC Class 3 does not mean that failure is impossible. No standard can eliminate every possible design, environmental, or application risk. What Class 3 provides is a stronger framework for reducing risk and building confidence.
When the requirements are properly specified and applied, Class 3 can support more rigorous workmanship criteria, tighter acceptance limits, stronger process control, more detailed inspection, better documentation, and deeper traceability. In practical terms, it makes it harder for defects to pass through production unnoticed.
For OEMs, this means better confidence that boards were built and inspected for demanding applications. It also provides a clear quality language between the customer, PCB manufacturer, assembler, and end user.
Why IPC Class 3 Matters for OEMs
When a PCB is used in a low-risk consumer product, the cost of failure may be limited. When a PCB is used in a medical device, aircraft system, defense product, robotic platform, power system, or industrial control, the consequences can be much higher.
IPC Class 3 provides a commonly used framework for communicating high-reliability workmanship, acceptance, and documentation expectations when those expectations are properly flowed down through the applicable specifications. It supports better supplier alignment, clearer quality expectations, stronger inspection discipline, and improved long-term performance.
For flex, rigid, and rigid-flex PCBs, this is especially important because reliability depends on both the physical construction of the board and the consistency of the manufacturing process.
Partnering With PICA for High-Reliability PCB Manufacturing
At PICA Manufacturing Solutions, we support customers developing high-reliability flex circuits, rigid PCBs, rigid-flex boards, and electronic assemblies for demanding applications. Our team works with OEMs to align board construction, materials, documentation, inspection requirements, and manufacturing controls with the needs of the final product.
Whether your program requires flexible interconnects, multilayer rigid boards, complex rigid-flex structures, or PCB assembly, early engineering collaboration can help identify Class 3 requirements before they become production risks.
Explore PICA’s PCB, flex, rigid-flex, and assembly capabilities to discuss the manufacturing approach for your next high-reliability program.
