Why AOI and Quality Control Matter in PCB and Flex Circuit Manufacturing
When it comes to PCB and flex circuit manufacturing, even the most well-designed layout can fail if the build process introduces errors. That’s why quality control—and specifically Automated Optical Inspection (AOI)—is a critical part of every reliable fabrication process.
As layer counts increase, traces shrink, and flexible materials introduce new variables, the margin for error gets smaller. AOI and supporting quality measures help ensure that every board shipped meets the electrical, dimensional, and reliability standards your design demands.
What Is AOI?

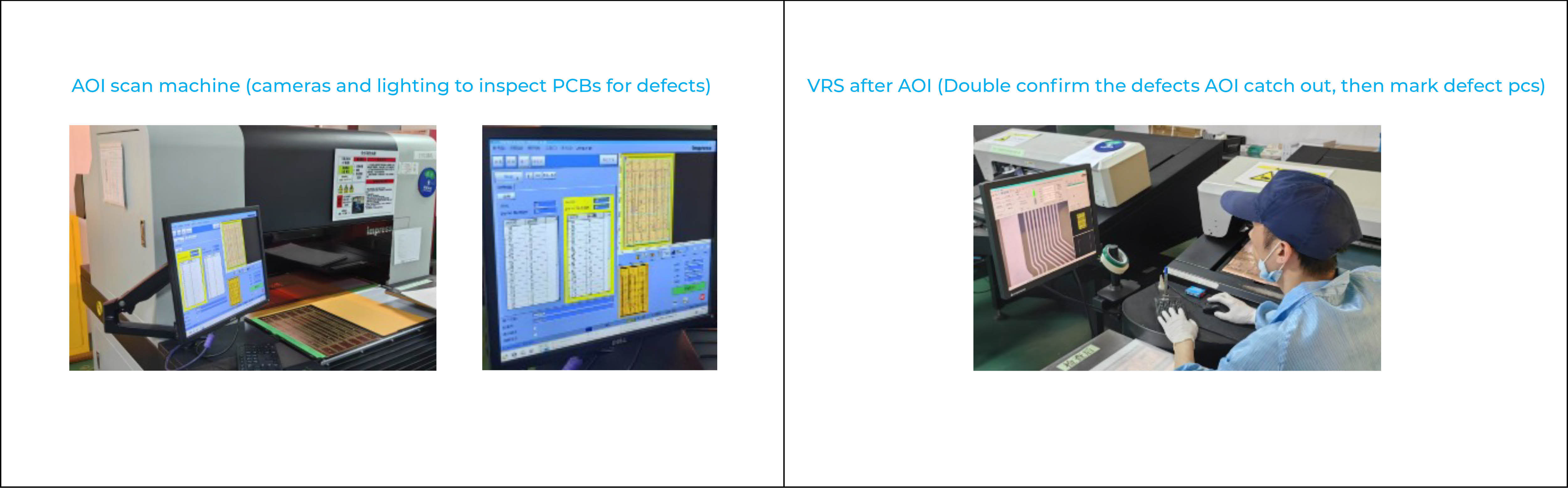

Automated Optical Inspection (AOI) is a high-speed vision system that uses cameras and lighting to inspect PCBs for defects. It scans either bare boards or assembled boards (post-assembly AOI), capturing high-resolution images and using software to compare against a known good reference or a netlist-driven design.

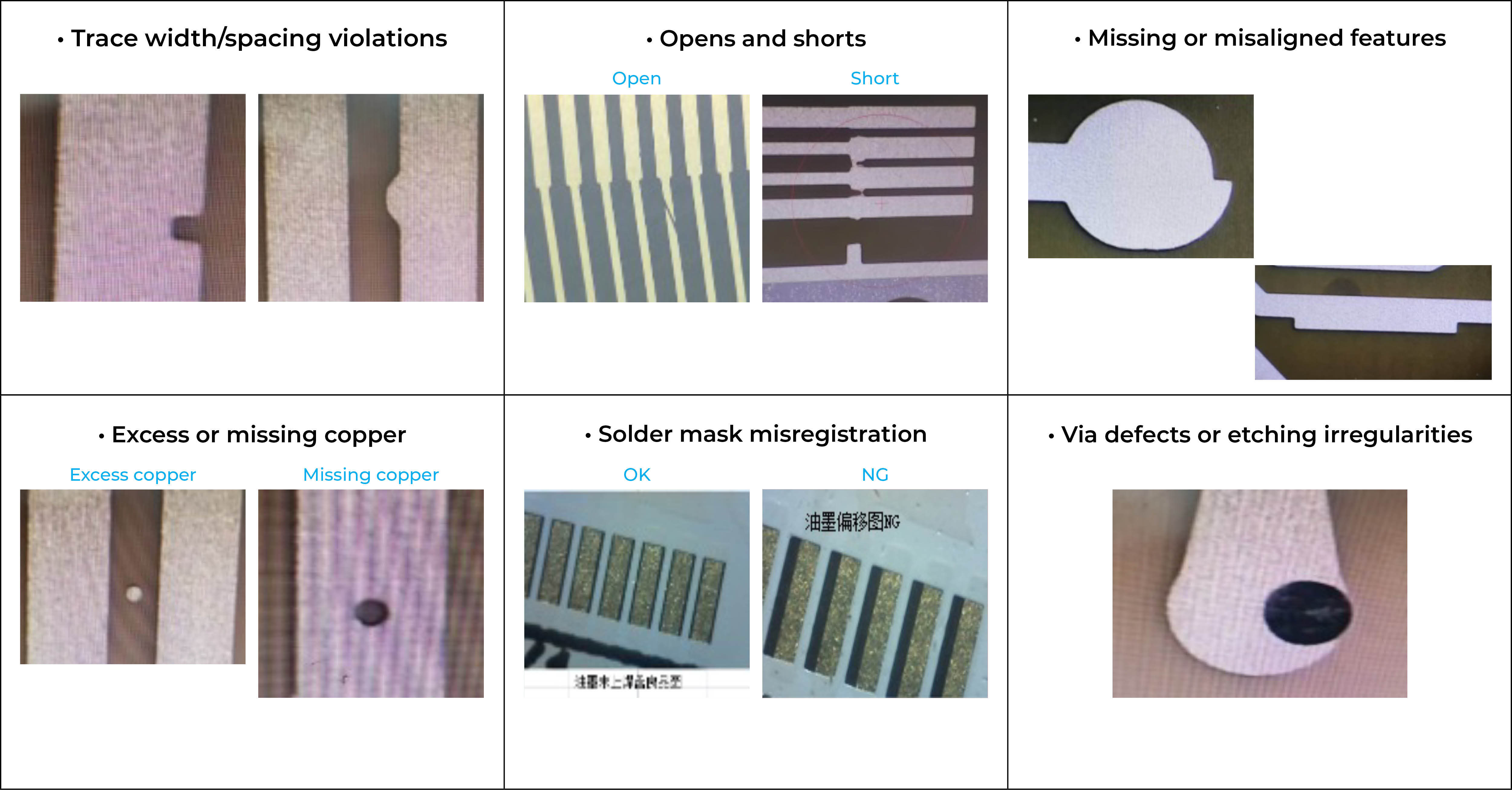

In most PCB and flex circuit factories, AOI is used to inspect:
Why AOI Is Essential—Especially in Flex and HDI Builds
1. Catches Defects Early
AOI is typically done right after the imaging/etching process—well before downstream steps like lamination, drilling, or plating. Catching errors early means avoiding costly rework later in the process.
2. Prevents Human Error
Manual inspection isn’t feasible at modern trace geometries (often <100 µm). AOI ensures consistency across high-volume production without relying on operator judgment.
3. Improves Flex Circuit Yields
Flex materials (like polyimide) can stretch, wrinkle, or deform slightly during processing. AOI systems adapted for flex can account for registration movement and detect issues without false positives.
4. Supports Tight Tolerances
When you're working with controlled impedance, fine-pitch BGA pads, or HDI designs, even a minor defect can ruin a board. AOI helps confirm that every trace and pad is built within spec.
See how PICA’s integration of Omron’s advanced AOI technology is redefining inspection precision. Discover how it improves yield, ensures quality, and supports your most demanding designs.

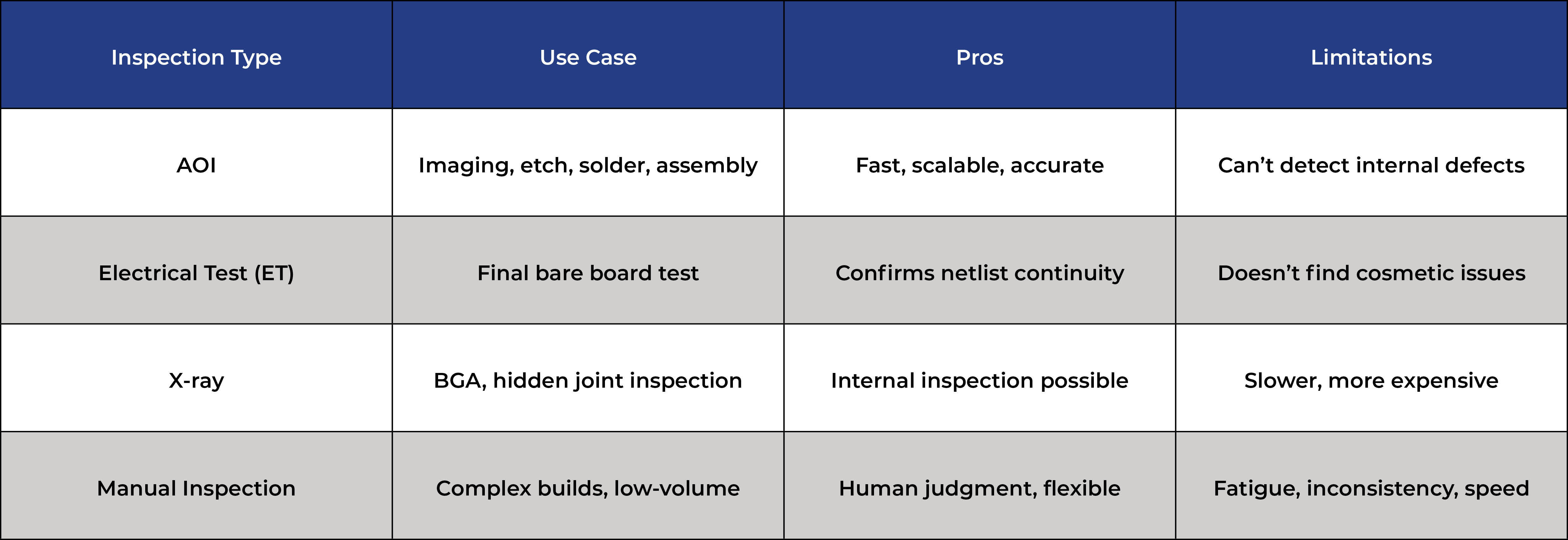

AOI vs. Other Inspection Methods
AOI in the Quality Workflow
AOI isn’t a standalone step—it’s part of a broader quality control system that ensures your product is built as intended. Here’s how it fits:
1. Pre-CAM Validation – Verifying data integrity before tooling2. In-Process AOI – Inspection after imaging or etch
3. Electrical Testing – Verifying continuity and isolation
4. Final Visual Inspection – Checking cosmetic and dimensional conformance
5. Lot-level Documentation – Traceability and compliance (RoHS, REACH, UL)
Together, these processes reduce scrap, shorten debug cycles, and ensure every shipped board meets spec.
Why Quality Control Is Even More Critical for Flex PCBs

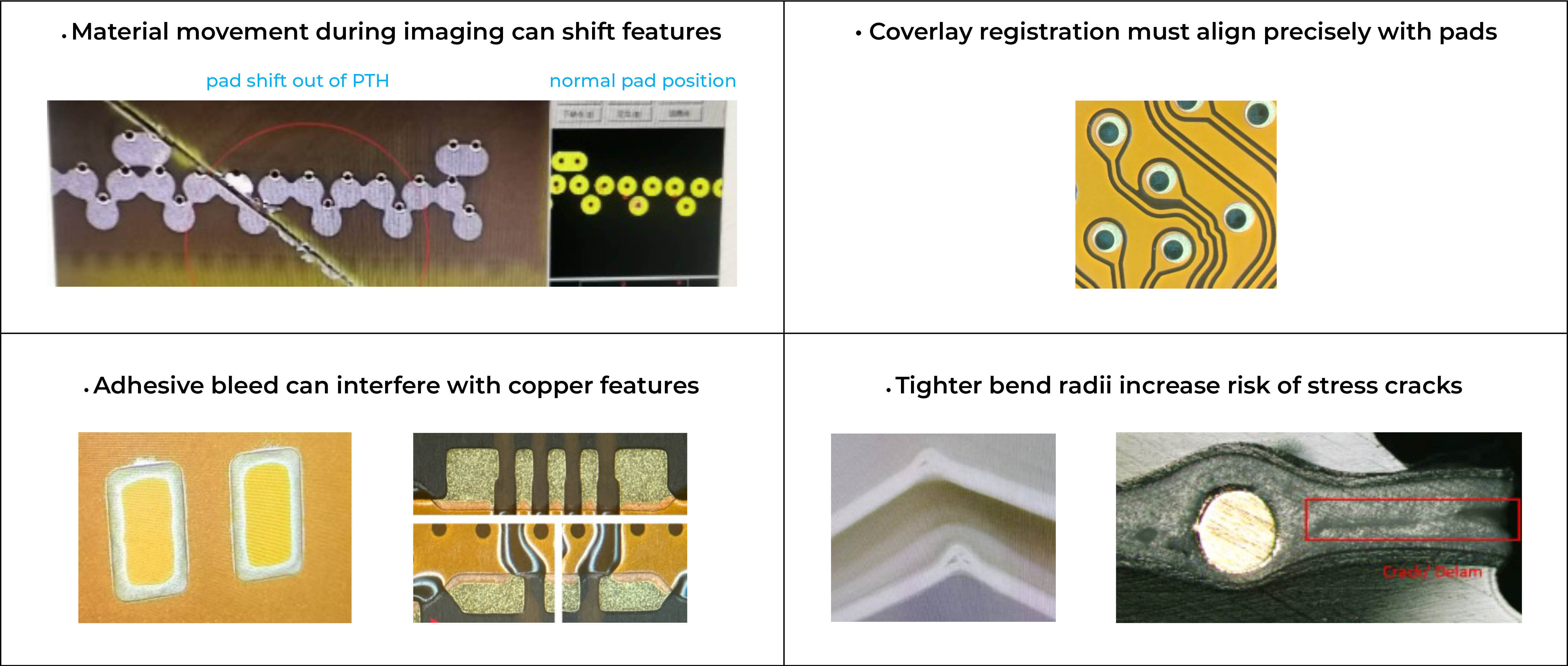

Flex and rigid-flex circuits introduce unique challenges:
That’s why quality processes like custom AOI algorithms for flex, layer-by-layer inspection, and precision lamination controls are required to consistently hit yield and reliability targets.
Final Thoughts
In PCB and flex circuit manufacturing, you don’t get a second chance at quality—every defect that makes it downstream adds cost, risk, and delay.
At PICA Manufacturing Solutions, we treat quality control as an engineering discipline. Our process includes multi-point AOI, final electrical test, and full lot traceability to support everything from standard rigid PCBs to complex multilayer flex builds.
