Modern products rarely fit neatly into a single interconnect category. Tight packaging, moving joints, long cable runs, heat-dense modules, and fast digital links often coexist in the same device. That’s where Hybrid PCB Assemblies shine. By combining rigid, flexible, flat flexible cable (FFC), wire harnesses, and metal-core PCBs into a single, integrated solution, you can simplify layouts, reduce connectors, and improve system-level performance—without re-spinning your whole design every time the mechanical envelope changes.
At PICA Manufacturing Solutions, we specialize in designing and building these multi-technology hybrids so you can align electrical, mechanical, and manufacturing goals in one build.
What “Hybrid” Really Means (and Why It Works)
A hybrid is not just a flex attached to a rigid board. It’s a zoned architecture that assigns the right technology to each job, then ties those zones together cleanly:
- Rigid PCB: dense components, heat sinks, tall parts, strong mechanical mounting, test access.
- Flexible PCB (FPC): tight 3D routing, dynamic bending, fine-pitch connectors, controlled impedance
- Flat Flexible Cable (FFC): long, mostly straight spans; low-cost, replaceable “trunk lines”; ZIF/LIF convenience.
- Wire Harnesses: power distribution and ruggedized connections where round cables, overmolding, or strain relief dominate.
- Metal-Core PCB (MCPCB): thermally conductive base for LEDs, power devices, or hot zones that must stay cool.
The win: each medium is used where it’s best, then combined to behave like one cohesive assembly.
Core Benefits—Now Through a “Combination” Lens
1) Space Efficiency
Integrating rigid, flex, FFC, harnesses, and MCPCBs reduces connector count and air gaps. FPC handles tight folds in congested areas; FFC runs lie flat across long spans; MCPCBs push heat out where power devices live. The result is more electronics in less volume with clean service paths.
2) Improved Reliability
Every connector you delete removes a potential failure point. Hybrids consolidate interconnects, shorten return paths, and cut stress at critical joints (with stiffeners, strain relief, and proper bend radii). The assembly is sturdier in shock, vibration, and daily use.
3) Better Electrical Performance
Because the interconnect is planned as a whole, you can preserve impedance continuity through zones, keep differential pairs together end-to-end, and place ground pins or shields where they matter most. That means cleaner eye diagrams and fewer SI surprises at bring-up.
4) Design Flexibility
Rigid areas give you structure; flex routes around the impossible; FFC scales length without a layout re-spin; harnesses manage rugged terminations; MCPCBs keep thermals in check. You’re no longer forced to choose—you combine.
5) Cost Efficiency
Use custom flex where geometry or cycling demands it, and replace “expensive length” with FFC for long, straight spans. Fewer parts and simpler assembly steps lower total cost, while modularity (swap FFC lengths; keep the board set) controls SKU proliferation.
Talk to an Engineer
Get quick guidance on your hybrid PCB concept and see where flex, rigid-flex, and MCPCB can cut risk and cost.
Hybrid Capability Highlights (What We Build Together)
• Rigid-flex + wire-harness integration for rugged products that still need service loops or external cabling.

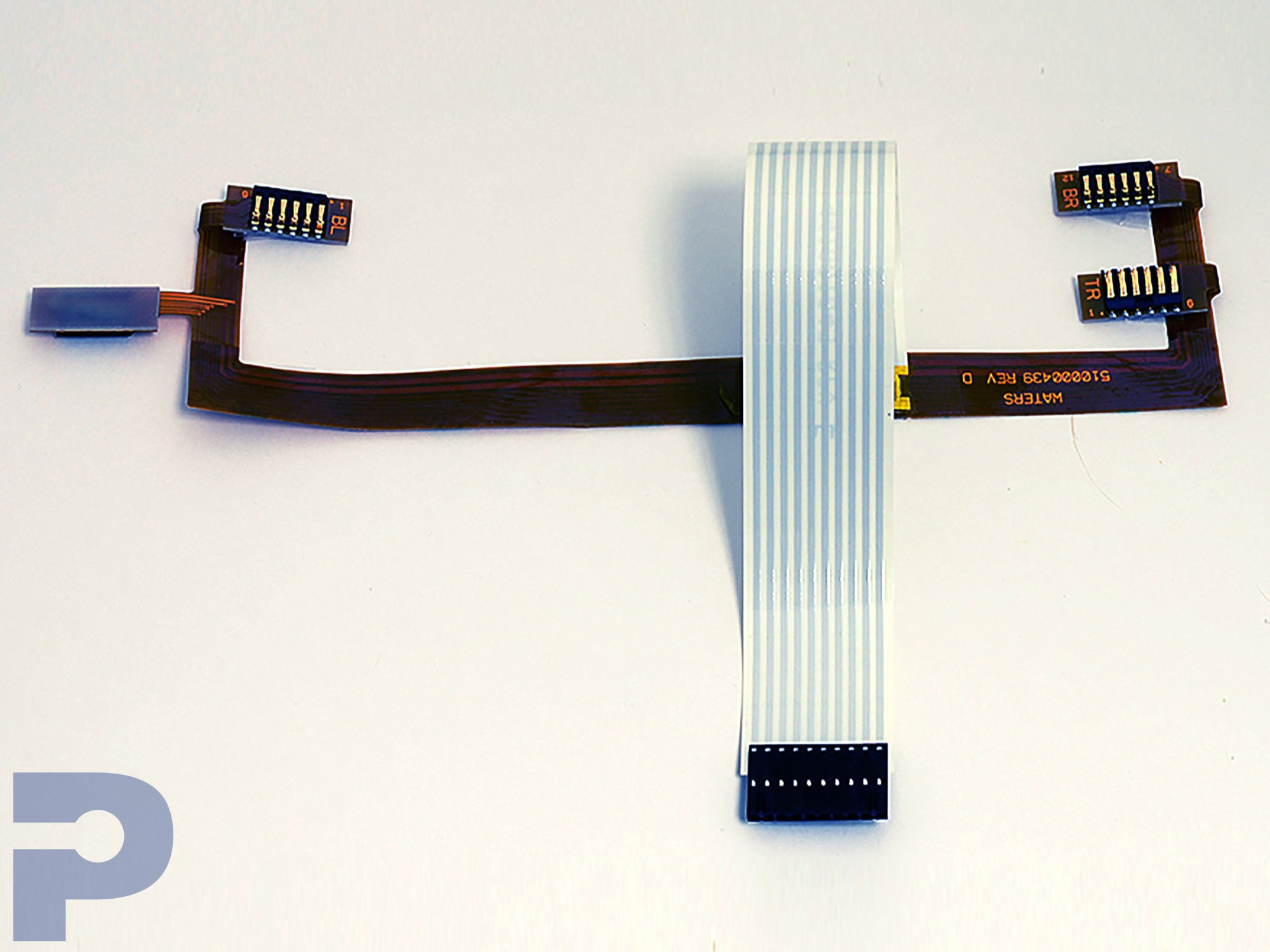

• Embedded FFC within flex circuits to traverse long distances at low cost while keeping tight areas on tailored FPC.
• Metal-core + FR-4 hybrid stack-ups for localized thermal performance next to standard logic.
• Controlled impedance and high-speed routing across mixed media (rigid → connector → flex/FFC → connector → rigid).
• Adhesiveless polyimide, RA copper, and EMI shielding where bend life and noise margins are tight.
• Seamless PCBA + custom assembly services, including conformal coat, selective overmold, labeling, and test.
Patterns That Maximize the Combo
Pattern A: Rigid-Flex at the Hinge + FFC for Distance
Use rigid-flex where millions of cycles live (hinges, lids, drawers). Hand off to FFC for the meter-scale, mostly static run to the baseboard. Reliability where it matters; economy where it doesn’t.
Pattern B: Flex “Islands” + FFC Trunk
Populate small FPCs near sensors, LEDs, or UI elements, then gather them with FFC to your controller. Local complexity, global simplicity.
Pattern C: MCPCB Hot Zone + Rigid Logic + Flex/FFC Bridge
Keep power devices on MCPCB for thermal performance; connect to logic boards with short flex or FFC spans. Cool where needed, compact everywhere else.
Pattern D: Harness for Power + FFC/Flex for Signals
Round-cable harness carries current with robust strain relief; flat media carries high-speed signals with tight routing. Each medium plays to its strengths.
Production & Test—Why Hybrids Build Faster
• Parallelization: Rigid, rigid-flex, MCPCB modules build and test independently; the FFC/harness ties them together last.
• Simpler rework: Swap a cable in seconds instead of reworking a long soldered tail.
• Standardization: Reuse connector families and pitches across programs; barcode FFC lengths to avoid line mix-ups.
• Targeted test: Do ICT/FCT at the rigid boards; quick continuity/impedance checks after final cable-up.
DFM Checklist for Combination Success
• Connector mapping: Lock differential pairs and ground adjacency through PCB → connector → FFC/FPC → connector → PCB.
• Bend planning: Use RA copper and keep vias away from bend zones; choose ≥10× thickness radius on static FFC bends.
• Stiffeners & relief: Polyimide/FR-4 stiffeners at padfields; clamps or guides near ZIFs to avoid peel forces.
• Thermals: Put hot components on MCPCB; verify stack-up transitions where MCPCB meets FR-4.
• Shielding/EMI: Add ground fingers or shield films where needed; plan chassis bonds early.
• Service model: Document ZIF actuation, color-code harnesses, and define golden cable lengths per SKU.
Where Hybrids Win (Application Snapshots)
- Large printers & kiosks: Logic to print head/UI over long spans; field-replaceable FFCs.
- Medical devices: Cart-to-probe paths, panel serviceability, controlled impedance through flex zones.
- Automotive interiors: Seat/door modules, light bars, and hinge areas with mixed dynamic/static needs.
- Robotics & industrial enclosures: Distributed I/O, door-mounted HMIs, and hot power sections on MCPCB.
- Displays & lighting: LED engines on MCPCB with short flex to drivers, then FFC to controllers.
