Drone technology has progressed from basic remote-controlled aircraft into sophisticated autonomous platforms capable of collecting data, navigating complex environments, communicating over long distances, and making real-time decisions. Drones are now used for infrastructure inspection, agriculture, logistics, public safety, mapping, defense, environmental monitoring, and other demanding applications.
That evolution has changed the electronics inside the aircraft. Earlier drones often relied on a central rigid PCB, basic sensors, short-range communications, and multiple wire harnesses connecting separate boards and devices. Modern platforms may integrate high-resolution cameras, LiDAR or radar, artificial intelligence processors, advanced radios, redundant flight controls, battery-management electronics, and precision navigation systems.
Fitting these capabilities into a compact, weight-sensitive airframe requires more advanced flex circuits, rigid-flex circuits, and rigid PCBs. The electronics must support higher data rates, greater power density, tighter packaging, and improved reliability while operating under constant vibration, shock, moisture, temperature changes, and electromagnetic interference.
From Traditional Internals to Integrated Circuit Architecture
Traditional drone internals frequently used several rigid PCBs connected by bulky wire harnesses and board-to-board connectors. This architecture could be practical for early prototypes, but every cable, connector, bracket, and separate board added weight, occupied valuable space, and introduced another potential point of failure.
A custom flex or rigid-flex assembly can replace portions of that older internal architecture. Flexible sections route power and signals through narrow or irregular spaces, while rigid FR-4-supported areas provide stable locations for components, connectors, processors, and sensors. In some designs, multiple rigid boards and their connecting harnesses can be consolidated into one integrated rigid-flex assembly.
Reducing discrete wiring and connectors can lower interconnect weight, simplify installation, improve assembly repeatability, and reduce failures caused by loose contacts, wire termination damage, or improper connector mating. The weight savings may also create more room for payload, batteries, cooling features, or additional sensing capability.

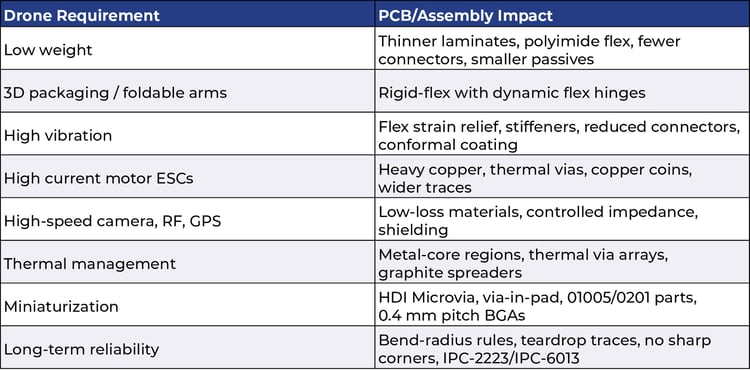

Selecting Flex, Rigid-Flex, and Rigid PCB Technologies
Flex circuits are well suited for lightweight interconnections, camera modules, antennas, sensors, gimbals, and locations where the circuit must conform to the airframe. Rigid-flex circuits combine rigid component areas with flexible interconnect sections, making them useful when several electronic functions must be connected within a compact and vibration-prone assembly.
Rigid PCBs remain important for flight controllers, motor-control electronics, power conversion, communications modules, and battery-management systems. Depending on current and heat requirements, these boards may incorporate heavier copper, thermal vias, heat-spreading planes, or other thermal-management features.
Many advanced drones use a combination of all three technologies: rigid boards for high-density power and processing, rigid-flex for integrated avionics and board consolidation, and separate flex circuits for remote sensors or moving assemblies.
Designing for Controlled Impedance, EMI, and Grounding
High-resolution imaging, real-time mapping, autonomous navigation, and sensor fusion require reliable high-speed communication between cameras, processors, radios, and flight-control electronics. Controlled-impedance traces, matched differential pairs, consistent dielectric spacing, and carefully designed reference planes help maintain signal integrity across the interconnect.
At the same time, motors, switching regulators, antennas, and high-current power circuits can generate electromagnetic and radio-frequency interference. Grounded copper layers, shielding films, and grounded reference planes can help protect sensitive navigation and communication signals. In flexible regions, crosshatched ground planes may be used where appropriate to preserve shielding while reducing stiffness.
Thermal Management in Compact Drone Electronics
Advanced processors, power-conversion circuits, and communications modules generate more heat than earlier drone electronics, but the aircraft cannot carry large heat sinks or heavy cooling hardware. Thermal management must therefore be incorporated into the circuit architecture.
Rigid PCB areas may use copper planes, thermal vias, heat spreaders, and strategic component placement to move heat away from processors and power devices. Designers must also consider how heat travels through rigid-flex transitions and whether shielding or dense copper regions could restrict airflow or create local hot spots. Separating high-power sections from sensitive sensors can improve both thermal and electrical performance.
Designing Electronics for the Next Generation of Drones?
Discover how PICA supports advanced drone and autonomous aerial systems with flex, rigid-flex, PCB, and assembly solutions engineered for lightweight, high-reliability performance.
Protecting Flex Circuits from Vibration and Shock
Drone motors, propellers, airflow, rapid maneuvering, transportation, and landing impacts create continuous vibration and occasional shock. Although eliminating connectors can improve reliability, the flexible portions of the circuit must be designed to prevent uncontrolled movement, tearing, and conductor fatigue.
One of the most critical stress points occurs where a flex circuit exits an FR-4 stiffener or rigid section. If the circuit bends sharply along the stiffener edge, stress can concentrate in the copper, coverlay, and base material. Repeated vibration can eventually produce cracks or tearing at that transition.
The risk can be reduced by using gradual rigid-to-flex transitions, maintaining an appropriate bend radius, and positioning the intended bend away from the stiffener edge. In demanding applications, a strain-relief material may be added between a thick FR-4 stiffener and the flex to cushion the transition. Large corner radii, smooth circuit outlines, and reinforced high-stress areas can also improve tear resistance.
Conductor Placement and Bend-Region Design
Conductor placement has a direct effect on flex life. Traces should be positioned as close as practical to the neutral axis of the flex stackup, where tensile and compressive strain are reduced during bending. On double-sided circuits, staggering conductors rather than placing them directly above one another can reduce the concentrated strain associated with an I-beam configuration.
Active bend regions should remain free of plated-through holes, vias, solder pads, component terminations, and abrupt changes in conductor width. Smooth trace routing, rounded corners, filleted pad-to-trace transitions, and gradual width changes help eliminate stress risers. For dynamic applications, rolled-annealed copper and conductor orientation relative to the copper grain may also be considered to improve fatigue life.
The required bend radius depends on circuit thickness, layer count, and whether the circuit is flexed only during installation or repeatedly during operation. Dynamic gimbals and moving sensor assemblies generally require larger bend radii and more flexible constructions than static fold-to-install sections.
Mounting Strategy for Vibration Resistance
A flex circuit should not be left free to whip or flutter inside the airframe. Fasteners, clamps, screws, clips, relief bars, and other mounting features can stabilize the circuit and limit movement under vibration and shock. Mounting points should support the circuit without forcing a sharp bend or creating a new stress concentration.
Mounting holes can be incorporated into the flex design to control its position and reduce tearing. When a mounting hole does not have mechanical backing, retaining copper around the hole can provide additional reinforcement. The mounting geometry, copper retention, stiffener placement, and nearby trace routing should be reviewed together so the attachment point does not become the circuit’s weakest area.
Another area to be careful with is the mounting connectors which are recommended to be over-molded to overcome vibration and potential water leaking issue.
Balancing Electrical, Mechanical, and Weight Requirements
Drone circuit design involves competing requirements. Additional copper may improve power delivery and thermal spreading but increase weight and stiffness. Shielding may reduce interference but affect flexibility. Smaller bend radii save space but increase strain. FR-4 stiffeners improve mechanical support but require careful transition design.
These factors should be evaluated as one interconnected system. Early design-for-manufacturability collaboration can review stackup construction, controlled-impedance requirements, grounded copper layers, shielding, thermal paths, conductor placement, bend regions, FR-4 stiffeners, strain relief, mounting holes, copper reinforcement, and assembly sequence before the design is finalized.
Building the Next Generation of Drone Electronics
As drones become more autonomous, connected, and sensor-intensive, their internal electronics must deliver more capability without adding unnecessary mass or failure points. Replacing older wire-harness and multi-board architectures with purpose-built flex and rigid-flex interconnects can reduce weight, streamline assembly, and improve reliability.
The greatest benefits are achieved when electrical performance and mechanical durability are designed together. Controlled impedance, thermal management, grounded copper layers, FR-4 stiffeners, strain-relieved transitions, reinforced mounting points, and carefully engineered bend regions all contribute to a circuit that can survive the demanding operating environment of an autonomous aircraft.
