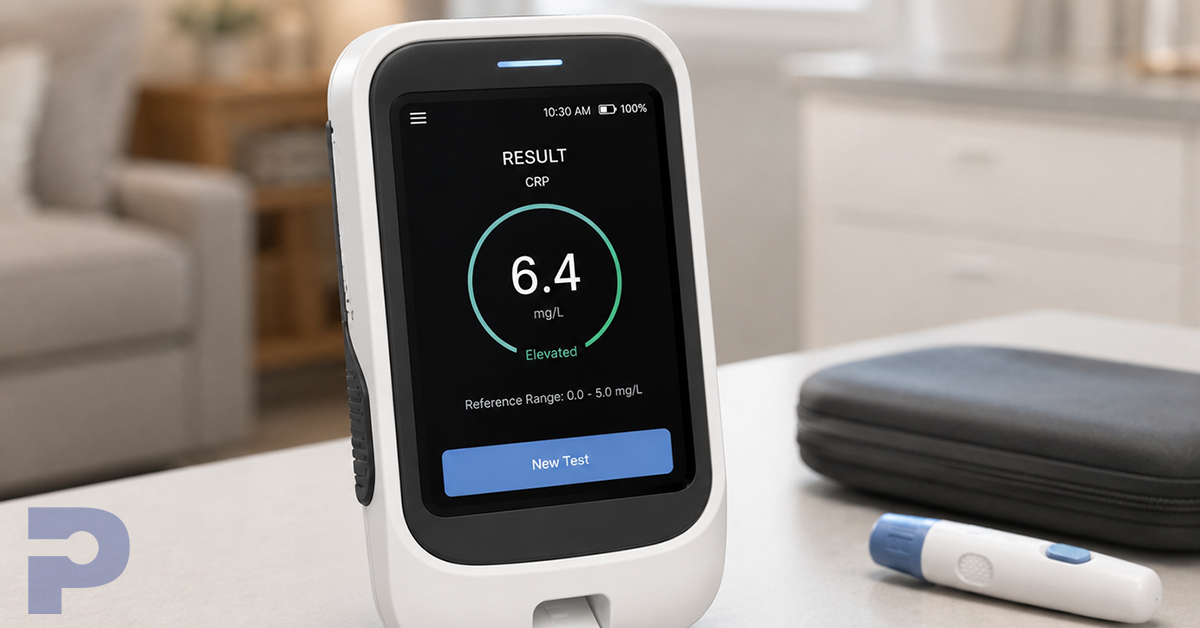

Point‑of‑care (POC) medical devices are designed to deliver diagnostics and monitoring directly at the patient’s location rather than in centralized laboratories. These systems must be compact, portable, energy‑efficient, and highly reliable. Flexible printed circuits (flex PCBs) are frequently used in these devices because they allow electronics to be integrated into smaller form factors while maintaining mechanical durability and electrical performance.

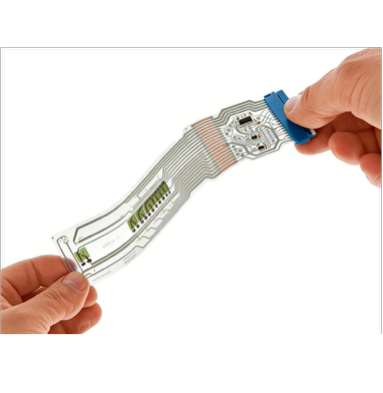

Flex circuits reduce wiring complexity, eliminate connectors, and allow designers to distribute electronics across a device enclosure. This enables lighter, more compact medical equipment while improving long‑term reliability.
Heat Management in Compact Devices

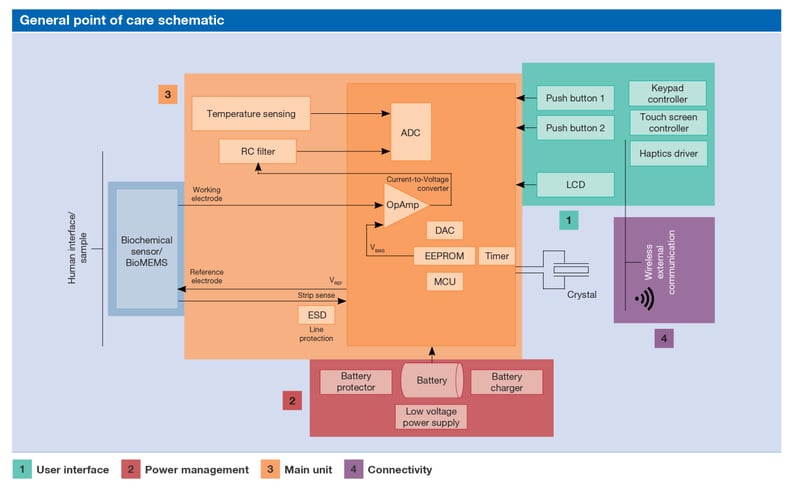

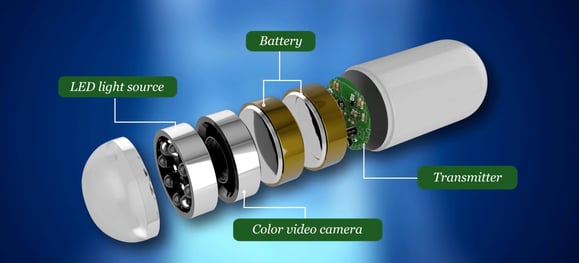

POC devices often integrate processors, sensors, wireless modules, and battery systems within very small enclosures. Managing heat is critical for maintaining measurement accuracy and protecting battery performance.
Flex circuits support better thermal distribution by allowing components to be located in different areas of the device rather than concentrating heat on a single rigid board. Copper planes or heavier copper weights can also be used to spread heat from power components and regulators. By distributing electronics and thermal loads, flex circuits help reduce localized hot spots in compact medical devices.
Reducing Device Weight and Complexity
Portability is a key requirement for handheld and wearable medical equipment. Flex circuits are significantly thinner and lighter than traditional rigid boards and wire harnesses.
In many designs, flex circuits with stiffeners or backing materials can replace rigid‑flex constructions. Stiffeners provide localized rigidity for component mounting while the flexible sections connect different areas of the device. This approach can reduce weight, simplify interconnections, and improve reliability at flex‑to‑board transition points.
Learn how flexible PCBs enable compact, reliable medical devices.
Explore PICA Manufacturing Solutions' flex PCB capabilities for advanced healthcare applications.
Designing for Mechanical Durability
POC devices are frequently transported, handled, and sometimes exposed to movement or vibration. Flex circuits can be engineered to withstand these conditions using proper materials and layout techniques.
Rolled annealed copper is commonly used for flex circuits because it provides better fatigue resistance than electrodeposited copper. Copper thickness can also be optimized depending on the application. Thinner copper improves flexibility for repeated bending, while thicker copper may be used where higher current capacity or additional mechanical strength is required.
Flex regions can also be reinforced using controlled bend radii, stress‑relief slots, mesh backing materials, or reinforced bend areas. These techniques reduce copper fatigue and improve long‑term reliability in circuits that experience repeated flexing.
Material Construction Options
Flex circuits can be manufactured using adhesive‑based laminates or adhesiveless constructions. Adhesiveless materials often provide thinner stack‑ups, improved dimensional stability, and better thermal performance. These properties are beneficial in compact medical devices where both reliability and flexibility are important.
Environmental Protection
POC medical devices may be exposed to cleaning agents, moisture, or medical fluids. Flex circuits can be protected using coverlay films, epoxy encapsulation, or conformal coatings to shield electronics from environmental exposure. These protective layers help ensure reliable operation even when devices are regularly disinfected or used in challenging environments.
Electromagnetic Interference Control
Many point‑of‑care devices operate near other electronic equipment such as monitors, wireless communication systems, and diagnostic instruments. Flex circuits can incorporate copper shielding layers, conductive films, or other EMI mitigation techniques to protect sensitive signals from electromagnetic interference.
Reliable Electronics for Portable Diagnostics
As healthcare continues to shift toward portable diagnostics and remote monitoring, electronics must deliver reliable performance in smaller and lighter devices. Flexible circuits support these requirements by enabling compact designs, reducing system weight, improving mechanical durability, and protecting electronics from environmental and electrical interference.

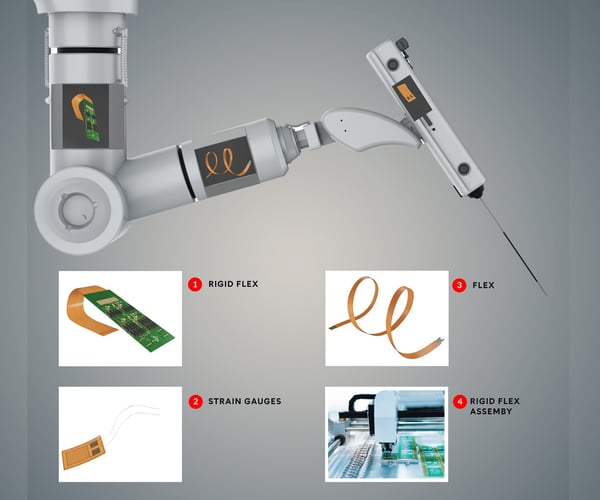

Designing and manufacturing flexible and rigid-flex PCBs presents unique challenges compared to traditional rigid boards. Careful consideration must be given to:

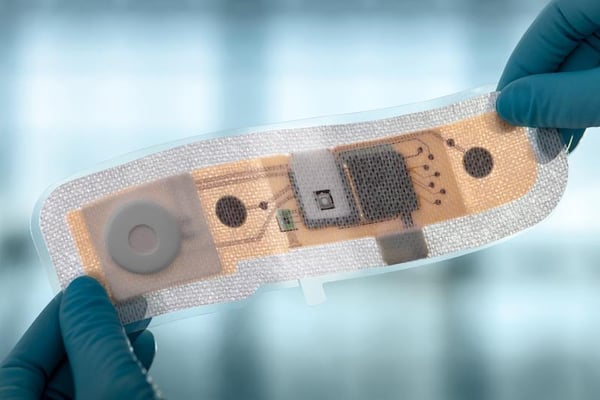

• Material Selection: Choosing the right substrate material (polyimide, polyester, etc.) and adhesive is crucial for performance and reliability. If the material is intended for skin contact, the use of biocompatible materials should be considered.
• Layer Stackup: The arrangement of rigid and flexible layers in a rigid-flex PCB must be carefully planned to ensure proper functionality and manufacturability.
• Routing: Trace routing on flexible sections requires special attention to avoid stress concentrations and potential cracking.
• Component Placement: Component placement should be optimized for both the rigid and flexible sections, considering factors like bending radius and stress.
Conclusion
As point-of-care medical devices continue to become smaller, lighter, and more sophisticated, flexible circuits will play an increasingly important role in enabling reliable performance, portability, and long-term durability. At PICA Manufacturing Solutions, we support medical device innovators with flexible and rigid-flex PCB solutions designed to meet the demanding requirements of next-generation diagnostic and monitoring technologies.
