Modern electronic systems often require more than point-to-point wiring. Power, signals, sensors, and communications may need to pass through tight spaces while remaining organized, protected, and easy to install. A custom wire harness turns those individual connections into an installation-ready assembly designed around the product.
By combining specified wires, terminals, connectors, labels, and protective materials, a custom harness can reduce wiring errors, improve repeatability, simplify final assembly, and make complex systems easier to manufacture and service.
What Is Custom Wire Harness Assembly?
Custom wire harness assembly is the manufacture of wires, cables, terminals, connectors, and protective components to a defined electrical and mechanical design. Unlike an off-the-shelf cable, a custom harness is built around the final product: wire lengths, branch locations, connector types, pinouts, labels, sleeving, and routing are all configured for the application.
Harnesses can range from simple point-to-point leads to complex multi-branch assemblies that connect equipment across a larger system. They are especially valuable when space, weight, installation time, serviceability, or environmental exposure makes loose or standard wiring impractical.

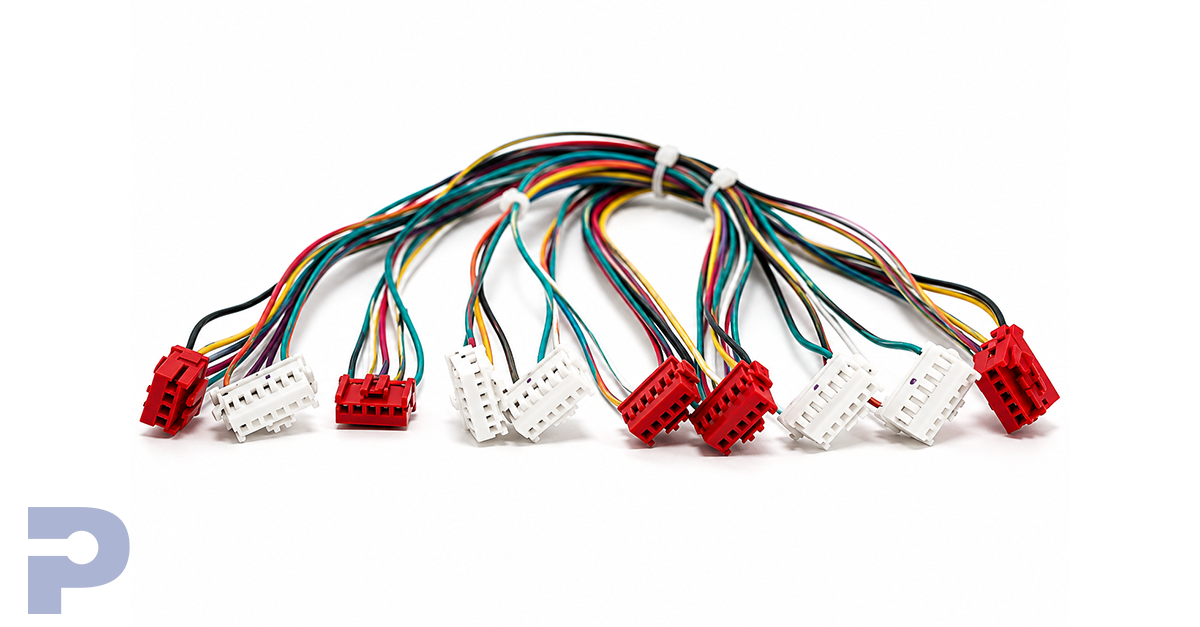

Example of a labeled, multi-branch wire harness arranged for installation.
Why Use a Custom Wire Harness?
A properly designed harness gives engineers greater control over how wiring fits and functions in the product. Connector positions, wire lengths, labels, and branch points are established before production, reducing manual wiring steps and improving unit-to-unit consistency.
The construction can also be matched to temperature, vibration, abrasion, moisture, chemicals, and electromagnetic interference. These conditions influence insulation, shielding, sleeving, strain relief, connector selection, and ultimately long-term reliability.
Compared with a custom flexible printed circuit (FPC), a wire harness may offer lower tooling costs, easier design changes, and more freedom for three-dimensional routing. Compared with a flat flexible cable (FFC), a discrete-wire harness may support more rugged protection and a broader range of connector and branching options. The best choice depends on space, current, bend behavior, production volume, environment, and total installed cost.
What Information Does a Manufacturer Need?
Clear, controlled documentation helps move a harness from design into production efficiently. Manufacturers typically need an assembly drawing and schematic; a bill of materials with approved part numbers; connector views and pinouts; wire and cable specifications; finished dimensions and tolerances; labeling; workmanship criteria; and acceptance-test requirements. Expected production volume, regulatory obligations, and operating conditions should be communicated early.
A design-for-manufacturability review can then identify routing conflicts, inaccessible connectors, unrealistic tolerances, unsuitable termination methods, or unnecessary complexity while the design is still economical to change.
Wire Gauge and Conductor Selection
Select wire size from the electrical load and installation conditions, not from current alone. Document continuous and peak current, system voltage, allowable voltage drop, circuit length, ambient temperature, bundle size, duty cycle, and permitted temperature rise. Longer runs and low-voltage circuits may require a larger conductor to control voltage drop even when a smaller wire could carry the current thermally.
American Wire Gauge (AWG) numbers decrease as conductor size increases. Many electronic harnesses use approximately 30–10 AWG, while high-current applications may require larger conductors. Small-gauge wire saves space and weight; larger wire reduces resistance and improves mechanical robustness. Final ampacity must follow the applicable standard, wire datasheet, terminal rating, and bundling or derating rules. The lowest-rated element—wire, terminal, connector, splice, fuse, or PCB interface—sets the usable limit.
Stranded copper is common because it tolerates flexing and vibration better than solid wire. Bare copper offers good conductivity and crimpability; tin plating improves corrosion resistance and solderability; nickel plating may suit higher-temperature service. Specify conductor stranding, plating, flexibility class, and compatibility with the terminal barrel on the drawing or bill of materials.
Insulation Materials and Temperature Ratings
Insulation must suit both the operating environment and the termination process. Common choices include PVC for economical general-purpose wiring; cross-linked polyethylene (XLPE) for improved heat, abrasion, and chemical resistance; ETFE and other fluoropolymers for thin-wall, lightweight, chemical-resistant, higher-temperature applications; silicone for flexibility across a broad temperature range; and PTFE for demanding temperature and chemical exposure. Exact grades and manufacturer ratings govern.
Commercial wire ratings may span roughly 80°C to 200°C depending on construction. Design temperature includes ambient conditions, conductor heating, nearby heat sources, enclosure effects, bundling, and transient extremes. Cold flexibility, flame behavior, fluids, abrasion, outgassing, smoke or toxicity requirements, and regulatory recognition may also control the selection.
If UL recognition or listing applies, define the required wire style or standard, temperature and voltage ratings, flame requirements, and component-recognition expectations at the start of the project. Do not rely on a generic insulation name when an approved part number or governing standard is required.
Connector and Terminal Selection
Begin connector selection with circuit function and operating environment. Key parameters include contact current and voltage, conductor-size range, contact resistance, pin count and pitch, polarization and keying, positive locking, mating-cycle life, insertion and withdrawal force, touch safety, sealing, temperature, vibration, strain relief, and applicable agency or industry approvals.
Connector categories include wire-to-wire and wire-to-board housings, circular connectors, sealed automotive-style connectors, rectangular multipin connectors, coaxial connectors, and ruggedized or high-density systems. Power contacts, low-level analog signals, differential pairs, thermocouples, and coaxial circuits have different termination and routing needs; one family may not suit every circuit in a harness.
Contacts must match the housing, wire gauge, conductor construction, plating, seal, and approved tooling. Control crimp height, conductor-brush position, insulation support, bellmouth, and pull-force requirements using the terminal supplier’s specifications. Mixing look-alike contacts, seals, or tools can create an assembly that mates correctly but performs unreliably.
Define connector or terminal retention strength as a measurable acceptance requirement. If the application also requires mating and unmating force or cycle testing, specify the limits and cycle count, and provide the manufacturer with the correct mating connector or an approved test fixture.

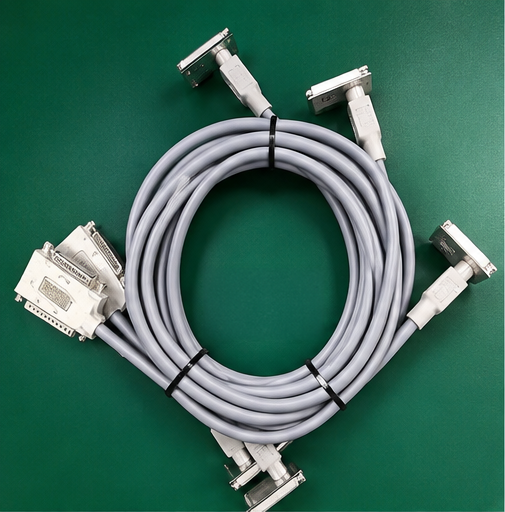

Connectorized cable assemblies illustrate how conductor, termination, and housing choices must work as a system.
Need a custom wire harness?
Explore PICA’s wire harness capabilities and see how we can support your application.
Mechanical Layout, Routing, and Protection
A harness drawing should define finished dimensions and the datum from which each branch is measured. Include branch breakouts, connector orientation, breakout tolerances, label locations, clip or grommet positions, shield terminations, splice locations, and constrained bundle diameters. Provide enough service loop for installation and repair without allowing excess wire to contact moving or hot parts.
Respect the published minimum bend radius for every wire, cable, and fiber. Place strain relief near terminations, avoid hard bends at connector exits, and keep splices and branch transitions away from high-flex or high-stress zones. Coaxial, shielded, high-speed, and repeatedly flexed cables deserve particular attention.
Protection may include braided sleeving, conduit, corrugated loom, heat-shrink tubing, tape, overbraid, grommets, clamps, boots, potting, or molded overmolds. Select these according to abrasion, cut-through, fluids, UV, flame, temperature, noise, weight, flexibility, and serviceability. For wet or dirty environments, define the complete sealed system—not only the connector body’s IP rating.

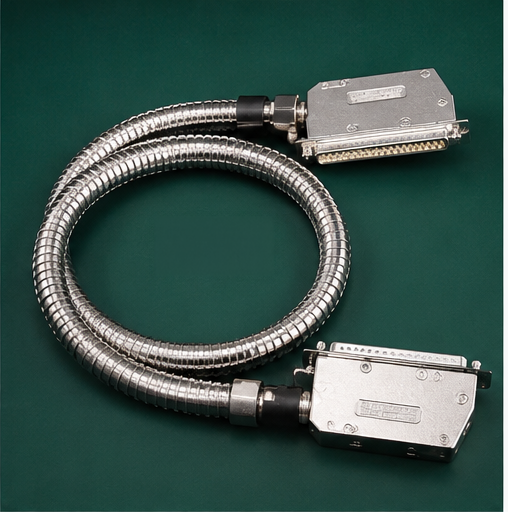

A protected harness assembly with flexible metal conduit and enclosed connectors.
Signal Integrity, Shielding, and Grounding
Separate sensitive signals from noisy power, motors, relays, and switching circuits where practical. Maintain the specified twist rate for differential pairs, preserve pair geometry through breakouts, and minimize untwisting near terminals. Controlled-impedance, coaxial, USB, Ethernet, CAN, and other high-speed circuits may require validated cable-and-connector combinations rather than ordinary hookup wire.
Shielding effectiveness depends on coverage, termination method, and grounding architecture. Define whether a shield or drain wire terminates at one end, both ends, or through chassis. The correct approach depends on frequency, system grounding, safety, and EMC requirements; at high frequencies, a low-impedance 360-degree termination is often more effective than a long drain-wire pigtail.
Design Inputs and Documentation Checklist
Before requesting a quotation or releasing a harness, provide:
• Electrical requirements: Circuit functions, nominal and maximum voltage, continuous and peak current, allowable voltage drop, grounding, shielding, impedance, and insulation-resistance or dielectric-test requirements.
• Environment: Operating and storage temperatures, vibration and shock, humidity or immersion, dust, salt spray, oils, fuels, cleaners, UV exposure, altitude, flammability, and expected service life.
• Mechanical definition: 2D drawing or model, dimensions and tolerances, routing, bend limits, branch points, connector orientation, retention points, mating access, pull-through constraints, and packaging envelope.
• Component definition: Approved wire, cable, terminals, housings, seals, backshells, splices, labels, protective coverings, substitutes, and obsolescence constraints.
• Manufacturing and quality: Crimp specifications, workmanship class, special processes, serialization or traceability, first-article needs, inspection criteria, test limits, regulatory requirements, annual volume, and lot size.
How Does the Wire Harness Assembly Process Work?
Although every project differs, most custom wire harness assemblies move through five core stages:
1. Design review: Drawings, schematics, materials, dimensions, pinouts, and test requirements are reviewed before production.
2. Wire preparation: Wires are cut and stripped to the required lengths, and the correct terminals and components are prepared.
3. Crimping and termination: Terminals are attached using the specified process to create dependable electrical and mechanical connections.
4. Harness assembly: Wires are inserted into connectors, routed into branches, and finished with sleeving, labels, heat shrink, ties, or strain relief.
5. Inspection and testing: The completed harness is inspected and electrically tested before shipment.

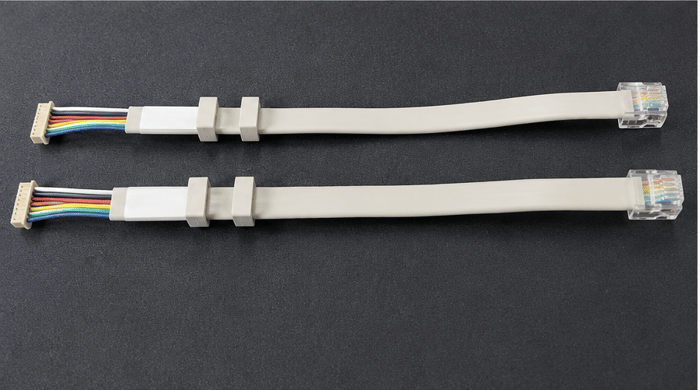

Consistent labeling and termination make finished cable assemblies easier to inspect and install.
Why Testing Matters
One incorrect pin, poor termination, damaged conductor, or wrong wire length can cause a failure after installation. At minimum, production testing commonly verifies point-to-point continuity, absence of shorts or miswires, and visual workmanship. Depending on risk and specification, testing may also include resistance limits, insulation resistance, dielectric withstand, shield continuity, four-wire or Kelvin resistance, terminal retention or pull testing, and functional testing.
Environmental qualification—such as thermal cycling, vibration, ingress, flex life, or chemical exposure—should be defined separately from routine production acceptance testing. Mating and unmating tests should use the specified counterpart connector or a validated fixture so the result reflects the intended interface.
What Should You Look for in a Custom Wire Harness Manufacturer?
The right manufacturing partner should provide more than basic assembly. Look for engineering support, design-for-manufacturability feedback, controlled crimping and termination processes, documented electrical testing, quality systems, and the ability to support changing production volumes. Supply-chain management also matters because a harness may contain many connectors, terminals, wires, sleeves, and specialty components that must remain available throughout production.
Custom Wire Harness Assembly at PICA
PICA Manufacturing Solutions supports custom wire harnesses and cable assemblies for complex electronic applications. Potential capabilities include simple and multi-branch harnesses, multiple wire gauges and connector families, protective sleeving, shielding, labeling, strain relief, automated wire processing, electrical validation, and scalable support from prototype through production. Confirm project-specific gauge ranges, materials, connector systems, testing, certifications, and capacity with PICA.

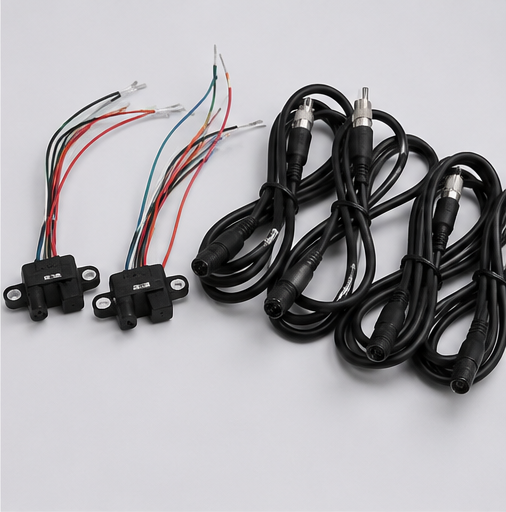

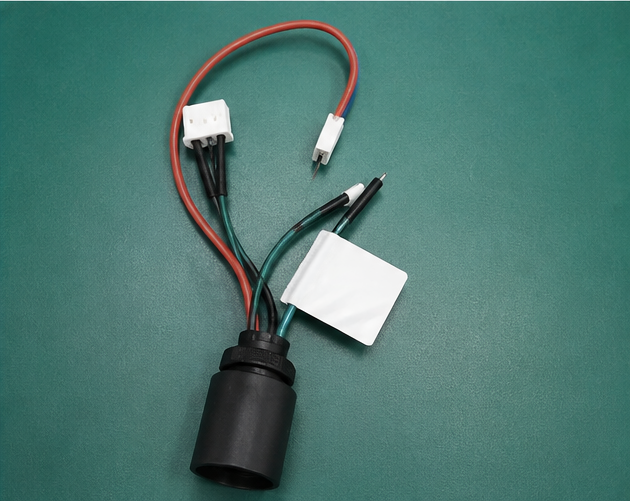

Example of a compact custom harness with multiple terminations and protective components.
Need support with a custom wire harness assembly? Explore PICA’s wire harness capabilities or talk with our team about your application requirements.
