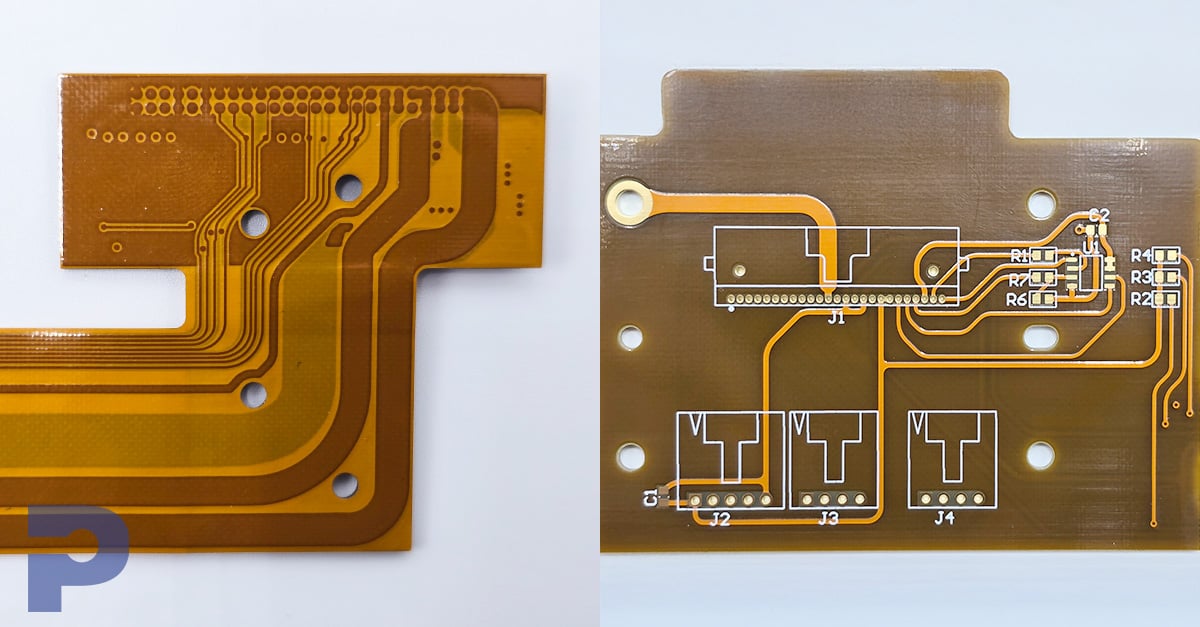

When Is Impedance Control Required in Flex and Rigid PCB Design?
As electronic systems become faster, smaller, and more complex, maintaining signal integrity across printed circuit boards is increasingly important. One of the key design considerations for high-performance electronics is controlled impedance. While not every circuit requires it, impedance control becomes essential when signals must travel across a PCB without distortion, reflection, or signal loss.
Both rigid and flexible printed circuit boards can require impedance control depending on the type of signals being transmitted and the operating frequency of the device. Understanding when impedance control is required - and how it impacts PCB design - helps engineers ensure reliable performance in modern electronic systems.
What Is Controlled Impedance in PCB Design?
Controlled impedance refers to designing PCB traces so they maintain a consistent electrical impedance along the entire signal path. Impedance is influenced by several factors including:
• Trace width and thickness
• Distance between signal trace and reference plane
• Dielectric constant of the substrate material
• Copper thickness
• Layer stack-up configuration
When these parameters are carefully controlled, the signal travels smoothly along the trace with minimal reflections or distortion.
Without impedance control, high-speed signals can experience signal reflections, timing errors, crosstalk, and degraded signal quality, which can lead to system instability or device malfunction.
When Is Impedance Control Required?
Not all circuits require controlled impedance. Many low-speed designs function reliably without strict impedance control. However, impedance control becomes critical when circuits carry high-speed digital signals, RF signals, or precision analog signals.
High-Speed Digital Interfaces
Modern communication interfaces often require controlled impedance to maintain signal integrity. Examples include:
• USB
• HDMI
• PCIe
• Ethernet
• SATA
• DDR memory interfaces
These high-speed protocols rely on precise impedance matching to prevent signal reflections and maintain accurate data transmission.
RF and High-Frequency Circuits

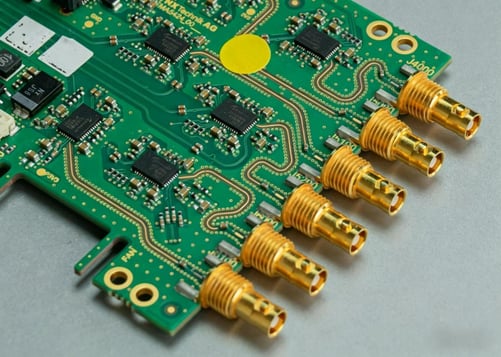

Radio frequency and microwave applications require carefully controlled impedance to ensure efficient signal transmission. These designs often involve antennas, transmitters, receivers, and wireless communication modules.
• Wireless communication devices
• Radar systems
• Satellite electronics
• Medical RF equipment
In these systems, even small impedance mismatches can result in signal loss or reduced system performance.
Long Signal Paths
When signals travel longer distances across a circuit board, impedance control becomes more important. Longer traces increase the likelihood of signal reflections and timing delays, particularly in high-speed digital systems.
Controlled impedance helps maintain signal quality over these longer routing distances.

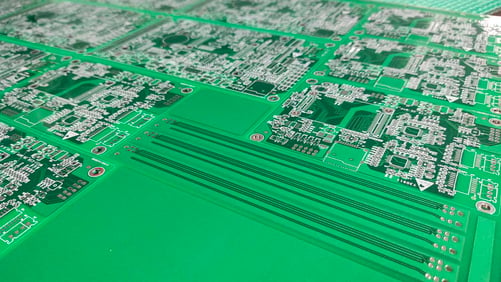

Differential Signal Pairs

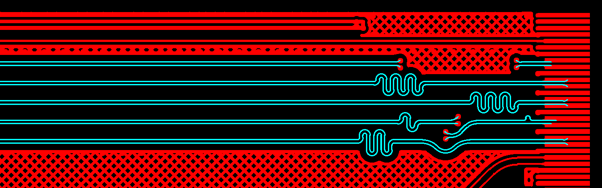

Many high-speed interfaces rely on differential signaling, where two complementary signals travel along paired traces. For these signals to function properly, the differential pair must maintain a consistent impedance along its path.
• USB
• Ethernet
• LVDS
• High-speed sensor interfaces
Maintaining precise spacing and geometry between traces ensures proper differential impedance.
Ensure your high-speed designs perform as intended.
Explore our Flex PCB capabilities and get expert DFM support for impedance-controlled designs.
Controlled Impedance in Rigid PCB Design
Rigid PCBs commonly implement controlled impedance for multilayer designs supporting high-speed digital and RF applications. Typical impedance structures used in rigid boards include:

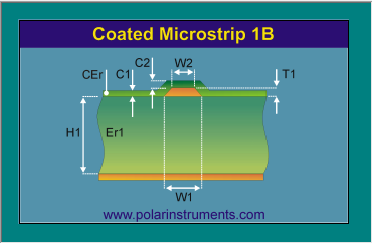

• Microstrip traces, where the signal trace is routed on an outer layer above a reference plane

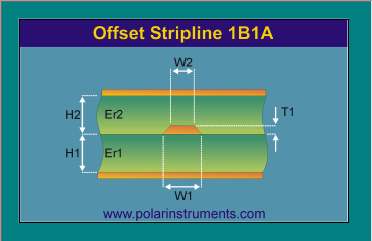

• Stripline traces, where the signal trace is embedded between two reference planes
These structures allow engineers to control impedance through careful stack-up planning and trace geometry.
Rigid boards often support complex multilayer configurations, making it easier to design controlled impedance structures for high-speed signals.
Controlled Impedance in Flexible Circuits
Flexible circuits can also require controlled impedance, particularly in applications where flex circuits carry high-speed digital signals, sensor data, or communication interfaces between rigid boards.
However, designing impedance-controlled flex circuits introduces additional considerations:
• Thinner dielectric materials
• Dynamic bending environments
• Copper types such as rolled-annealed copper
• Stack-up stability during manufacturing
Flex circuits used in high-speed electronics, wearable devices, medical equipment, and aerospace systems may require impedance-controlled routing to maintain signal performance.
Because flexible materials behave differently from rigid laminates, DFM collaboration between the design engineer and the manufacturer is often necessary to achieve the desired impedance targets.
Factors That Affect Impedance Control in PCB Manufacturing
Consistent impedance depends on the relationship between the board stack-up, materials, trace geometry, and manufacturing tolerances. Even small changes in dielectric thickness, copper weight, etching, or spacing can affect how a signal performs.
Key factors include:
• Stack-Up Design
Layer configuration, dielectric thickness, and reference plane placement all influence impedance.
• Material Properties
The dielectric constant of the substrate affects signal speed and impedance behavior.
• Manufacturing Tolerances
Copper thickness, etching variation, and material consistency can shift impedance from the intended target.
• Trace Geometry
Trace width, spacing, and distance from the reference plane must be designed to meet the required impedance value.
Because these variables are connected, manufacturers often use impedance modeling and testing to confirm the finished board meets the required electrical specification.
Impedance calculation
Using simulation software, select the appropriate model based on impedance requirements to perform impedance calculations. The impedance model includes various types of PCB design, including outer/inner layers, characteristics/differences, pre/post solder mask, single ended/coplanar, same/different layers, etc.

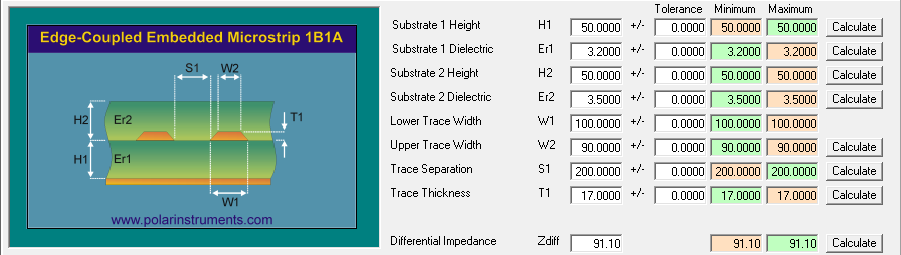

Below is an example of surface differential impedance calculation for FPC,
• H1: The thickness of the dielectric layer from the impedance circuit to the reference layer
• Er1: The dielectric constant of the dielectric layer
• H2: Coverlay thickness
• Er2: The dielectric constant of coverlay
• W1: Width at the bottom of the impedance line
• W2: Width at the top of the impedance line
• S1: Spacing between to impedance traces
• T1: Copper thickness of the impedance line
How DFM Support Improves Impedance Control
DFM support helps align the electrical design with real manufacturing capabilities before production begins. Early collaboration allows the manufacturer to review stack-up, material selection, trace widths, spacing, and impedance targets before the design is finalized.
This helps reduce redesign risk, improve manufacturability, and support reliable signal integrity in the finished PCB.
• Clear requirement
Clearly mark the impedance lines in the Gerber file and specify the impedance control requirements (such as USB-D+/USB-D - differential pair impedance of 90 Ω± 10%).
• Provide design parameters
Inform the manufacturer the line width (W), line spacing (S), distance to the ground (G), target impedance, board thickness requirements, and other information you are using.
• Use manufacturer model to confirm
The most crucial step! Use manufacturer internal precise impedance calculation model (based on their production process parameters: actual lamination thickness, copper thickness, etching factor, solder mask thickness, Dk/Df value, etc.) to recalculate and confirm that your design can achieve the target impedance. The manufacturer will inform if you need to adjust your design parameters (W/S).
• Accept adjustment feedback
The W/S value provided by the manufacturer based on process capability feedback is the most reliable, and the design should be modified according to their suggestions.
• Impedance testing
prototype build and provide testing report.
Designing for Reliable Signal Integrity
Controlled impedance is a critical element in many modern electronic designs. Whether using rigid or flexible circuits, understanding when impedance control is required helps engineers maintain reliable signal performance in high-speed and high-frequency systems.
As electronic devices continue to increase in complexity, careful PCB design and manufacturing collaboration become essential to ensure signals move cleanly through the circuit without distortion or interference.
