Flexible PCB Connectors: Options for Reliable Flex Circuit Interconnect Design
Flexible printed circuits are often chosen because they save space, reduce weight, and allow electronics to bend, fold, or fit into compact assemblies. But the flex circuit itself is only part of the design. How that flex circuit connects to the rest of the system is just as important.
Connectors for flexible PCBs can impact reliability, assembly time, repairability, signal integrity, cost, and long-term durability. Whether the design uses a Molex-style FFC/FPC connector, a ZIF connector, a crimped termination, or a soldered connection, the right choice depends on the application, available space, current requirements, mating cycles, and environmental conditions.
At PICA Manufacturing Solutions, we help customers evaluate flex circuit connector options early in the design process so the final assembly is easier to manufacture, test, and integrate.
Common Connector Options for Flexible PCBs
Flexible PCBs can connect to rigid boards, displays, sensors, batteries, motors, control modules, and other electronic assemblies in several ways. The most common options include:
• ZIF and LIF FFC/FPC connectors
• Molex-style flexible circuit connectors
• Crimped or terminated flex leads
• Soldered flex connections
• Board-to-board and board-to-flex connectors
• Custom contacts, stiffeners, tabs, and terminations
Each option has advantages depending on the design.
ZIF Connectors for Flexible PCBs

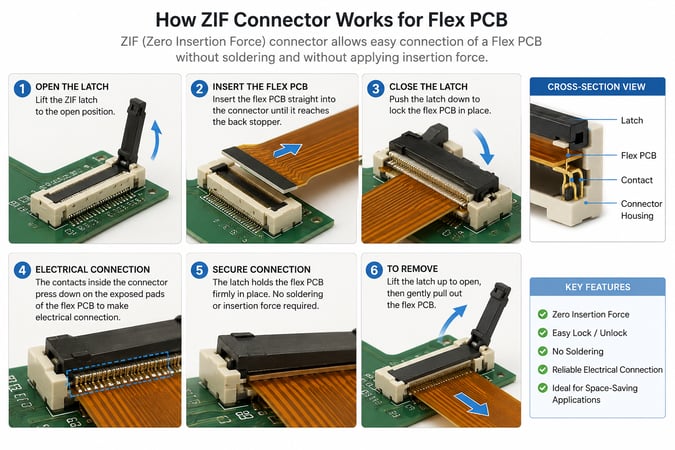

ZIF stands for zero insertion force. These connectors are widely used with FFCs and FPCs because they allow the flexible circuit tail to slide into the connector with minimal force. A locking actuator then secures the flex in place.
ZIF connectors are commonly used in displays, cameras, consumer electronics, medical devices, handheld products, sensors, and compact electronic assemblies. They are a strong choice when the flex circuit may need to be assembled, removed, or replaced without soldering.
Molex offers Easy-On FFC/FPC connectors with different actuator styles, pitch sizes, and circuit sizes for flexible cable and flex circuit applications.
Benefits of ZIF connectors
ZIF connectors reduce insertion stress on the flex tail, support compact designs, and make assembly or service easier. They are especially useful when the flex circuit connects to a rigid PCB and may need to be disconnected during testing, repair, or final assembly.
Design considerations
The flex tail usually requires a stiffener to provide the thickness and rigidity needed for proper insertion. Designers also need to match the connector pitch, contact orientation, exposed conductor side, tail thickness, and plating requirements. Poor alignment, incorrect stiffener thickness, or insufficient retention can cause intermittent connections.
LIF Connectors for Flexible PCBs
LIF stands for low insertion force. These connectors require more insertion force than ZIF connectors but are still designed to make flex insertion easier than a standard friction-fit connector.
LIF connectors may be used when the application does not require frequent mating and unmating but still needs a compact, reliable connection between the flex circuit and a rigid board.
Benefits of LIF connectors
LIF connectors can be compact, cost-effective, and suitable for applications where the flex is installed once and left in place. They may also reduce the need for more complex actuator mechanisms.
Design considerations
Because LIF connectors rely more on controlled insertion and retention force, the flex tail dimensions, stiffener, plating, and tolerance control are very important.
Molex-Style FFC/FPC Connectors
When people refer to “Molex connectors” for flexible PCBs, they are often talking about FFC/FPC connectors used to connect a flex tail to a rigid PCB. Molex, TE Connectivity, Hirose, and other connector manufacturers offer many versions of these products.
These connectors are widely used because they are available in many pitch, height, orientation, contact, and actuator styles. They can support compact layouts while still allowing the flex circuit to be disconnected during assembly, testing, or service.
Benefits of Molex-style FFC/FPC connectors
These connectors are widely available, familiar to many design teams, and available in many pitch, height, orientation, and locking styles. They are often used when the flex circuit needs to connect to another PCB without permanent soldering.
Design considerations
Not every Molex-style connector works with every flex circuit. The connector must match the flex tail thickness, exposed contact side, pitch, conductor count, current requirement, and mechanical retention needs. Designers should also consider whether the connector will be hand assembled, robotically assembled, or used in an environment with vibration, movement, or repeated service access.
Need help choosing the right connector for your flexible PCB design?
PICA Manufacturing Solutions can help review your flex circuit layout, connector requirements, stiffener design, and assembly needs to support a reliable, manufacturable interconnect solution.
Crimped and Terminated Flex Connections
Some flex circuits are terminated with crimp contacts, pins, housings, or other mechanical connector systems. This can make sense when the flex circuit needs to connect into a wire harness, control module, battery system, or larger electromechanical assembly.
Crimped connections can be useful in applications where the flexible circuit functions as part of a broader interconnect system rather than a simple board-to-board jumper.
Benefits of crimped flex connections
Crimped or terminated flex leads can provide durable mechanical retention, simplified final assembly, and compatibility with existing connector housings or wire harness systems.
Design considerations
Crimping onto a flexible PCB requires careful design of the copper geometry, material stack-up, reinforcement, and termination area. The crimp zone may need added thickness, plating, or mechanical support to avoid damage during assembly or use.
Soldered Flex PCB Connections

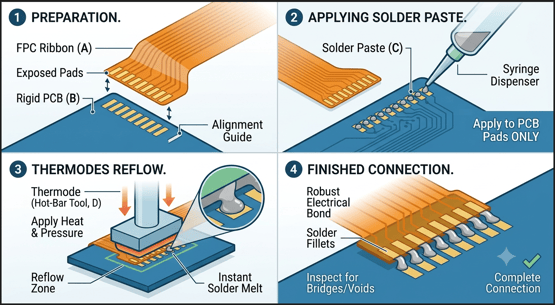

A flex circuit can also be soldered directly to a rigid PCB, component, pad, terminal, or assembly. This creates a permanent connection and may eliminate the cost and space required for a connector.
Soldered flex connections are common when the assembly does not need to be disconnected, when space is extremely limited, or when a low-profile connection is required.
Benefits of soldered flex connections
Soldering can reduce part count, save space, and create a permanent electrical connection. It can also be useful for compact products where connector height is a major concern.
Design considerations
Soldered flex connections need strain relief. Without proper support, bending near the solder joint can lead to cracking, lifted pads, or conductor fatigue. Designers should avoid placing bend areas too close to solder joints and should consider adhesive support, stiffeners, coverlay openings, or mechanical clamping.
Board-to-Board and Board-to-Flex Connectors

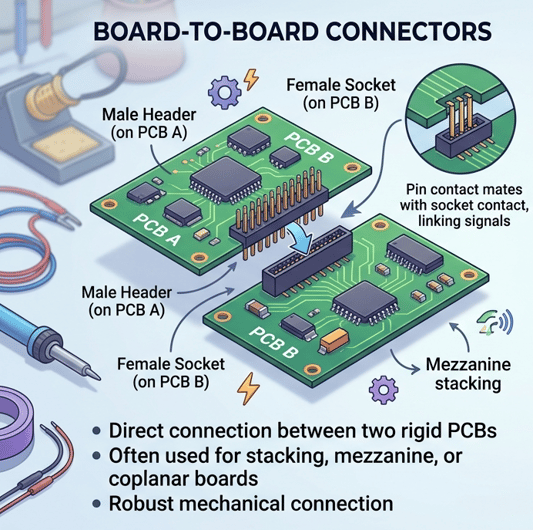

Board-to-board and board-to-flex connectors are used when a flexible circuit connects two rigid boards or connects directly into a compact board stack. These are common in medical devices, aerospace electronics, robotics, wearables, cameras, industrial controls, and high-density electronics.
For high-speed or impedance-controlled flex designs, connector selection becomes especially important because the connector is part of the signal path.
Benefits of board-to-flex connectors
These connectors can support compact packaging, controlled mating, and repeatable assembly. For high-speed or impedance-controlled flex designs, connector selection becomes especially important because the connector is part of the signal path.
Design considerations
For high-speed applications, designers should evaluate impedance continuity, grounding, shielding, connector footprint, contact layout, and transition geometry. The flex circuit and connector should be reviewed together, not as separate design decisions.
The Role of Stiffeners in Flex PCB Connector Design
Many flexible PCB connector designs require a stiffener at the flex tail. A stiffener adds mechanical support and helps the flex meet the connector’s required insertion thickness.
Common stiffener materials include polyimide, FR-4, and polyester, depending on the application and connector requirements. The stiffener does not carry electrical signals, but it plays a major role in assembly reliability.
A properly designed stiffener can improve insertion, reduce handling damage, support connector retention, and help maintain contact alignment. An incorrectly specified stiffener can cause poor fit, intermittent contact, or assembly failure.
Key Questions When Choosing a Flexible PCB Connector
Before selecting a connector, engineers should consider:
1. Will the flex circuit be disconnected later?
If yes, a ZIF, LIF, or mechanical connector may be better than a soldered connection.
2. How much space is available?
Low-profile connectors or soldered terminations may be needed for compact devices.
3. Will the assembly experience vibration or movement?
Additional retention, strain relief, or mechanical support may be required.
4. What current and signal requirements are involved?
Power circuits, high-speed signals, impedance-controlled traces, and shielding needs all affect connector choice.
5. How will the product be assembled?
Hand assembly, automated SMT, robotic insertion, and field servicing may require different connector styles.
6. Does the flex tail need a stiffener?
Most FFC/FPC connector designs require careful stiffener selection to meet thickness and insertion requirements.
PICA’s Approach to Flexible PCB Connector Design
At PICA Manufacturing Solutions, we work with customers to evaluate the full interconnect system, not just the flex circuit layout. Connector choice affects material selection, copper design, stiffener placement, plating, bend radius, assembly process, and final reliability.
Our team can support flexible PCB designs that use Molex-style connectors, ZIF and LIF connectors, crimped terminations, soldered connections, board-to-board interfaces, and custom interconnect solutions. By reviewing these details early, we help reduce redesigns, improve manufacturability, and support long-term product performance.
Conclusion
Choosing the right connector for a flexible PCB is not just a component selection decision. It is a design-for-manufacturing and reliability decision.
ZIF and LIF connectors can make assembly and service easier. Molex-style FFC/FPC connectors offer proven options for many compact electronics. Crimped and terminated flex leads can support wire harness integration. Soldered connections can save space and reduce part count. Board-to-flex connectors can support compact, high-density, and high-speed designs.
The best connector depends on the application, environment, assembly process, and performance requirements. When the connector, flex tail, stiffener, and circuit layout are designed together, the result is a more reliable and manufacturable flexible PCB assembly.
