PCB design for medical electronics demands more than just electrical functionality. Devices must meet strict regulatory standards, operate reliably over long lifetimes or single-use cycles, withstand sterilization or biological exposure, and maintain performance under mechanical and environmental stress. Whether the application is a patch sensor, wearable monitor, handheld diagnostic unit, or implantable component, engineering teams need to align electrical design with manufacturability, safety, and compliance from the earliest stages.
Medical applications place unique expectations on the electronics. Devices must operate consistently, often at low power with stable signal integrity and noise control, while staying thin enough to conform to ergonomic shapes or skin-contact geometries. Miniaturization often drives fine-line routing, functional integration, and hybrid rigid-flex or pure flex architectures. Early collaboration with the manufacturer ensures that stack-up design, material selection, and trace rules support the required reliability without driving unnecessary process risk.

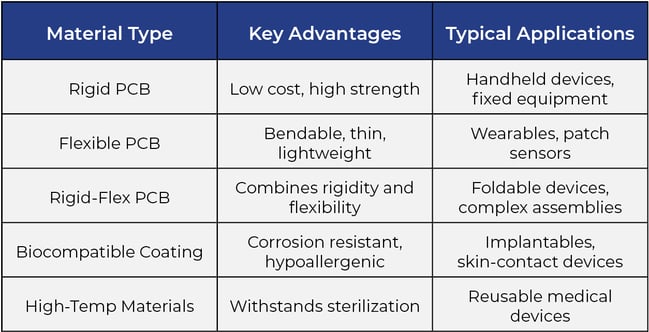

Material choice matters significantly. Flex and rigid-flex PCBs are widely used because they reduce connectors, improve mechanical durability, and enable compact form factors. Substrates, copper types, adhesives, surface finishes, and protective coatings must be chosen with biocompatibility, sterilization compatibility, and environmental stability in mind. The thermal, electrical, and chemical characteristics of these materials affect safety, yield, and long-term performance.
Reliability also extends to interconnects and protection strategies. Designers must account for bending cycles, moisture barriers, power stability, controlled impedance paths for sensors, and noise reduction around analog front ends. Early discussions on DFM, test coverage, shielding requirements, and conformance testing accelerate development and avoid redesigning cycles that delay clinical evaluation.
Bring Your Medical PCB Concept to Life—Safely and Efficiently
From materials to stack-ups to regulatory readiness, our team can help.
Core Considerations for Medical PCB Design
• Signal integrity for low-power sensing and data transmission
• Mechanical durability for skin-contact wearables or flexing elements
• Moisture and contamination protection through coatings or encapsulation
• Biocompatibility, sterilization compatibility, and thermal stability
Compliance is another pillar. Medical devices must follow regional regulatory frameworks such as FDA, IEC standards, ISO 13485 quality systems, and in some cases HIPAA-related data safeguards. Documentation, traceability, and controlled manufacturing processes are essential. Working with a manufacturer experienced in medical markets helps ensure that both design data and physical builds meet verification and validation needs without unexpected deviations.
In summary, designing PCBs for medical devices blends electrical performance, manufacturability, material science, and regulatory awareness. Bringing engineering and compliance considerations forward in the design stage prevents costly revisions, accelerates approvals, and produces electronics that operate safely, accurately, and consistently in clinical use.
