As electronic devices become more compact and powerful, managing heat effectively is critical to ensuring performance, reliability, and long product lifespans. Excessive heat can cause component failures, signal degradation, and even safety hazards. Whether working with rigid PCBs, flexible circuits, or rigid-flex hybrids, proper thermal management is essential. In this post, we’ll explore the challenges of heat dissipation in advanced electronics and the proven strategies manufacturers use to keep devices cool and dependable.
Why Thermal Management Matters
Modern devices—from wearable sensors to high-power automotive systems—pack more functionality into smaller spaces. As current densities rise and high-frequency signals increase, so does the heat. Without effective dissipation:
• Reliability decreases: Components can delaminate, solder joints weaken, and materials degrade.
• Performance suffers: High temperatures increase electrical resistance, reducing signal integrity.
• Product lifespans shorten: Heat accelerates material fatigue and reduces MTBF (Mean Time Between Failures).
Key Thermal Management Challenges
1. Miniaturization – Less surface area for heat dissipation while power demands rise.
2. High-Density Interconnects (HDI) – Tight trace spacing increases local hot spots.
3. Material Selection – Standard FR-4 substrates may not provide sufficient thermal conductivity for advanced designs.
4. Dynamic Environments – Wearables, automotive, and aerospace applications face fluctuating heat loads and harsh environments.
Proven Thermal Management Strategies
1. Material Selection
Choosing the right substrate is the foundation of thermal control:
• Metal Core PCBs (MCPCBs) for high-power LEDs or RF modules.
• Polyimide flex materials with tailored thermal properties for lightweight, flexible applications.
• Ceramic-filled laminates for improved thermal conductivity in HDI boards.
2. Copper Management
• Thicker copper layers distribute heat more effectively.

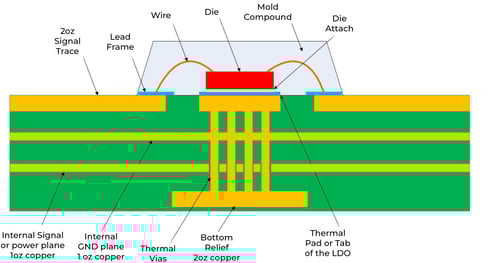

• Thermal vias transfer heat from surface layers to internal or bottom heat-spreading planes.
• Copper pours and planes act as heat sinks, balancing mechanical and thermal needs.
Keep your electronics cool and reliable—
Partner with PICA for advanced thermal management.

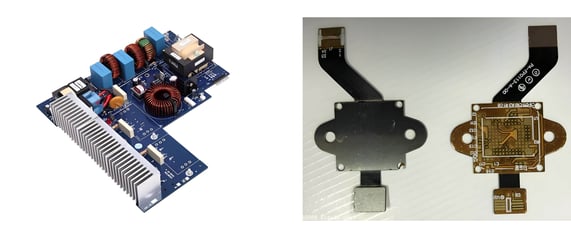

3. Mechanical Aids
• Stiffeners with thermal properties add both mechanical strength and heat dissipation.
• Heat sinks and spreaders bonded to PCB surfaces for high-power areas.
• Conformal coatings that include thermal conductivity enhancers.

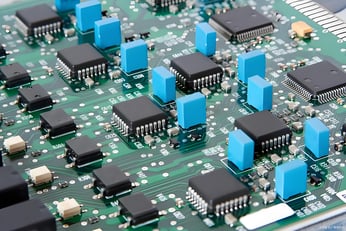

4. Design Layout Optimization
• Place heat-generating components evenly to avoid concentrated hot spots.
• Increase spacing between high-power ICs.
• Align traces to optimize thermal flow paths.
5. Advanced Manufacturing Techniques
• Embedded heat pipes or graphite layers for next-generation flex designs.
• Thermal interface materials (TIMs) to improve contact between hot components and dissipating structures.
• Roll-to-roll (RtR) processes that enable high-throughput production of thermally managed flex solutions.
Industry Applications
Conclusion
Thermal management is no longer an afterthought—it’s a critical design factor in every modern electronic product. By selecting the right materials, optimizing layouts, and leveraging advanced manufacturing methods, PICA Manufacturing Solutions helps customers build reliable, high-performance electronics that withstand today’s thermal challenges.
Need support for a thermally demanding design? Contact PICA to learn how our expertise in PCB and flex circuit manufacturing can ensure your products stay cool under pressure.
